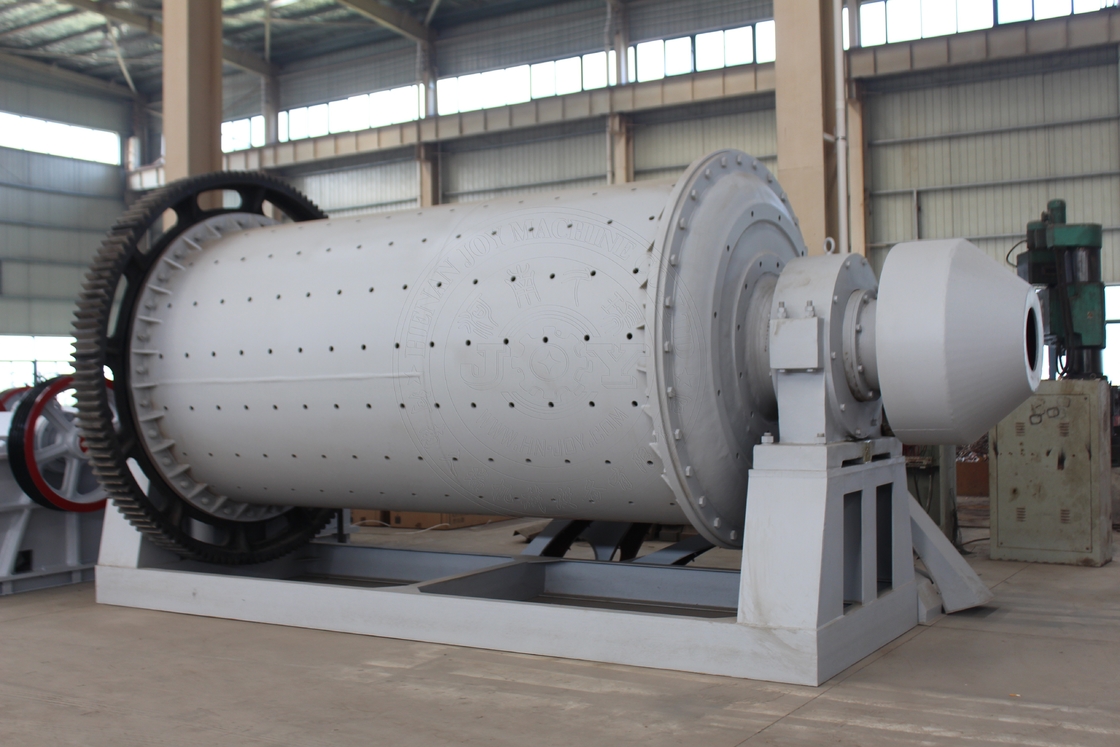

2.4 X 10m Dry Ball Mill Transmission Feeding Discharging Zoomline Dry Grinding Mill

2.4 x 10m Dry Ball Mill

19t/h Dry Ball Mill

Zoomline dry grinding mill

Place of Origin:

henan China

Brand Name:

Zoomline

Request A Quote

Product Details

Capacity:

16-19t/h

Model:

2.4*10m

Highlight:

2.4 x 10m Dry Ball Mill

19t/h Dry Ball Mill

Zoomline dry grinding mill

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden box or film

Delivery Time

30-50 days

Payment Terms

T/T

2100 X 3000MM Industrial Ball Mill 2400 X 4500MM High Energy Ball Milling

Get Best Price

Video

150mm - 300mm Slag Grinding Mill Grinding Mill Machine Customizable

Get Best Price

150 - 300mm Slag Grinding Mill Roller Mill Grinder 4500 Cm2/G

Get Best Price

Video

25Mm Slag Grinding Mill 400mm - 700mm Ball Mill Grinder

Get Best Price

86-0391

Contact Now

Product Description

Dry Ball Mill 2.4*10m Supporting transmission feeding and discharging device

Introduction to dry ball mill equipment

Dry ball mill is named because no water is added during the production process, and it is straight-cylinder-shaped. Dry ball mills require the cooperation of induced draft devices, dust exhaust pipes and dust removal equipment when working, and the grinding method is opposite to that of wet ball mills. Dry type is mainly used for grinding raw materials or finished products such as cement, refractory materials, chemical raw materials, phosphate fertilizers, and grinding of ores before selecting non-ferrous metals in ore dressing plants. In the production process of aerated concrete, it is used to grind cement, lime, desulfurized gypsum, quartz sand, fly ash and other materials.

Performance characteristics of dry ball mill

1. The ground mineral powder has a small particle size and high working efficiency

2. Reduce consumption and increase production. While reducing unit energy consumption, the output is greatly improved

3. The design method improves the wear resistance of the machine body, saving you a lot of maintenance costs.
Dry ball mill structure and instructions
Dry ball mill consists of feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electronic control) and other main parts. The hollow shaft is made of cast steel, the inner lining is removable, the rotating large gear is made of casting hobbing, and the cylinder is inlaid with wear-resistant lining, which has good wear resistance.

Product Specification (m)	Production Capacity (t/h)	Mill Type	Drive Type	Power (kW)	Reducer Model	Weight (t)
Φ1.5×5.7	3 - 4	Open - circuit	Peripheral	130	ZD40	24.7
Φ1.83×7.0	4 - 7	Open - circuit	Peripheral	210	ZD60	36
Φ2.2×7.0	8 - 9	Open - circuit	Peripheral	300	ZD70	54
Φ2.2×7.5	10 - 11	Open - circuit	Peripheral	380	ZD70	63
Φ2.2×8.0	10 - 12	Open - circuit	Peripheral	380	ZD70	65
Φ2.2×9.5	14 - 16	Open - circuit	Peripheral	475	ZD70	70
Φ2.4×10.0	16 - 19	Open - circuit	Peripheral	630	JR75	94.5
Φ2.4×11.0	19 - 21	Open - circuit	Peripheral	630	RZD80	99.2
Φ2.4×13.0	21 - 23	Open - circuit	Peripheral	800	MBY710	115.2
Φ2.6×13.0	28 - 32	Open - circuit	Peripheral	1000	MBY800	148
Φ2.6×13.0	28 - 32	Open - circuit	Central	1000	MFY100	101.73
Φ3.0×12.0	32 - 35	Open - circuit	Peripheral	1250	MBY900	168.6
Φ3.0×13.0	34 - 37	Open - circuit	Peripheral	1400	MBY900	172.26
Φ3.2×13.0	45 - 50	Open - circuit	Peripheral	1600	MBY1000	196.26
Φ3.8×13.0	60 - 62	Open - circuit	Central	2500	MFY250	204
Φ4.2×13.0	85 - 87	Open - circuit	Central	3530	JQS3550	254
