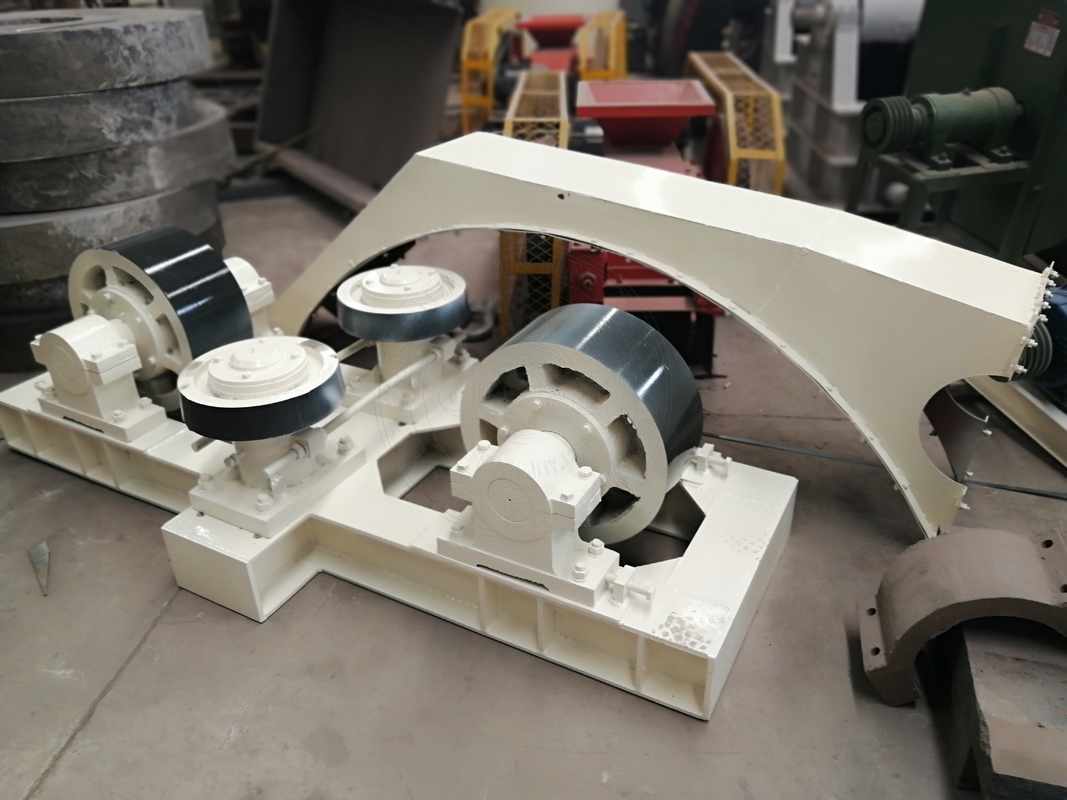

Body Support Customizable Rotary Steam Dryer Lifting Plate Supporting Roller

Body Support Customizable Rotary Steam Dryer Lifting Plate Supporting Roller

lifting plate supporting roller

customizable rotary dryers

customizable plate supporting roller

Place of Origin:

henan china

Brand Name:

Rotary Dryers

Contact Us
Request A Quote
Product Details
Application:
Drying Of Bulk Materials
Installation:
Stationary Or Portable
Heating Method:
Direct Or Indirect
Type:
Industrial Dryer
Control System:
Manual Or Automatic
Capacity:
Customizable
Maintenance:
Easy To Maintain
Safety Features:
Emergency Stop, Temperature Control, Etc.
Highlight:

lifting plate supporting roller

,

customizable rotary dryers

,

customizable plate supporting roller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
Body Support Customizable Rotary Steam Dryer Lifting Plate Supporting Roller
Product Overview

The rotary drum dryer is a core industrial drying equipment designed for efficient and stable drying operations across various industries. It precisely meets drying requirements for different materials, ensuring optimal moisture content for subsequent production processes.

Key Features
Application
Drying of Bulk Materials
Installation
Stationary or Portable
Heating Method
Direct or Indirect
Type
Industrial Dryer
Control System
Manual or Automatic
Capacity
Customizable
Maintenance
Easy to Maintain
Safety Features
Emergency Stop, Temperature Control
Working Principle

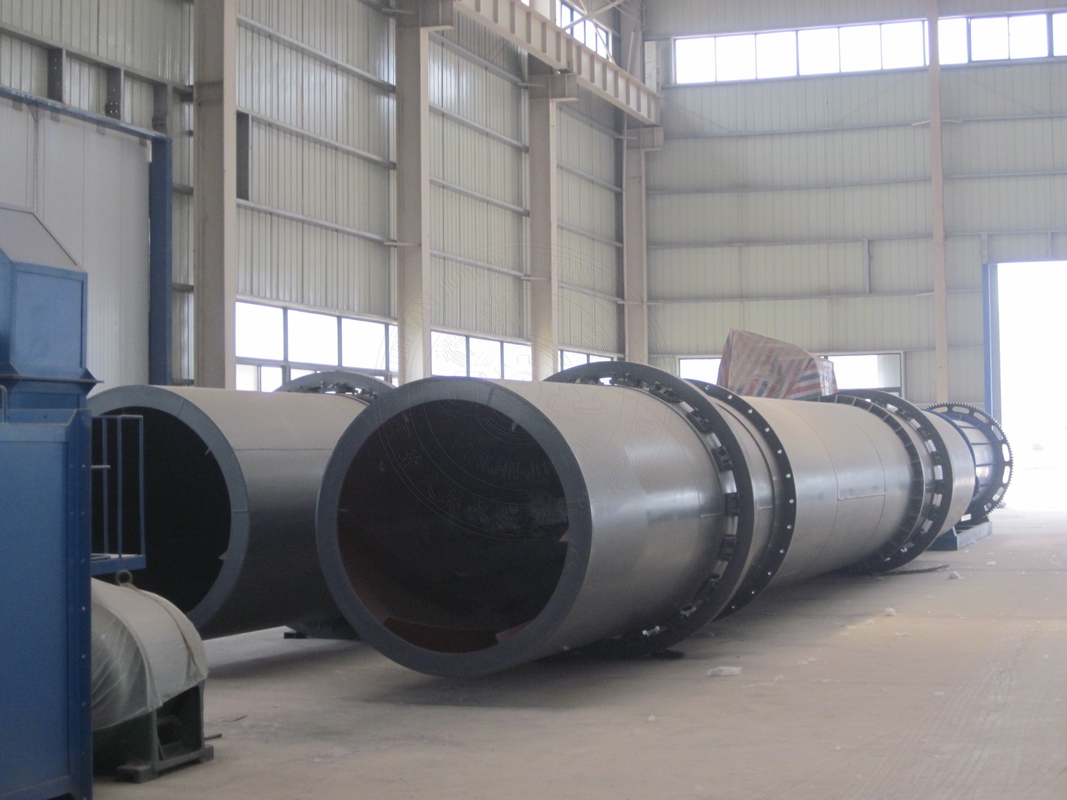

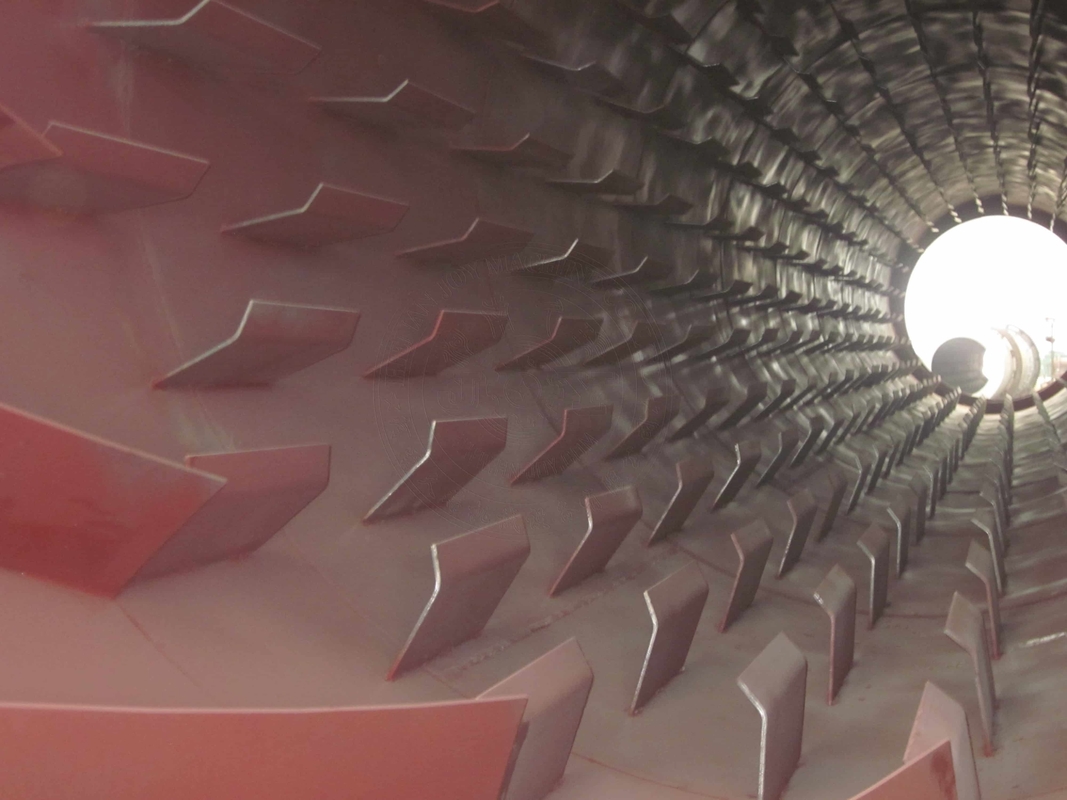

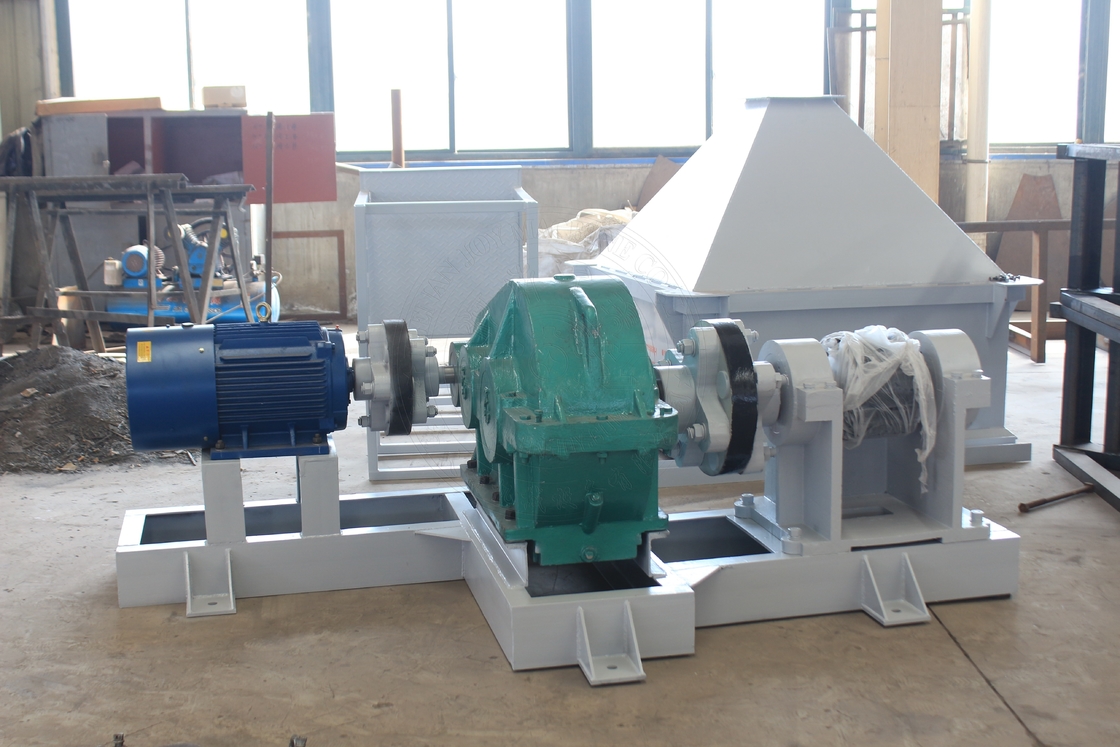

The rotary drum dryer consists of a rotary drum, driving device, feeding device, discharging device, and heating device. Wet materials enter the inclined rotary drum where they are continuously lifted and dropped while high-temperature hot air flows through, evaporating moisture. The dried materials are then discharged at the opposite end.

Performance Advantages
High-Efficiency Drying Capacity

Unique structural design ensures full contact between materials and hot air, achieving rapid drying for both large-volume block materials and viscous paste-like materials.

Good Drying Uniformity

Continuous rotation prevents uneven drying, ensuring stable product quality and reduced defective rates.

Strong Adaptability

Adjustable parameters accommodate heat-sensitive materials and various heating methods (steam, electric, gas) to meet diverse customer needs.

Technical Specifications
Model Inside dia. (m) Length (m) Gradient (%) Rotate speed (r/min) Power (kw) Capacity (t/h) Weight (kg)
ZT - 1.2×6/8 1.2 6/8 5.0 5.8 5.5 8 - 12 9380/10200
ZT - 1.5×12/15 1.5 12/15 5.0 4.8 15 12 - 16 16450/18240
ZT - 1.8×12/14 1.8 12/14 5.0 4.5 18.5 18 - 20 20000/21000
ZT - 2.2×12/14 2.2 12/14 5.0 4.3 22 22 - 28 30500/32000
ZT - 2.4×14 2.4 14 4.0 3.78 30 30 - 35 46000
ZT - 2.4×18 2.4 18 4.0 3.0 37 35 - 40 50000
ZT - 2.4×22 2.4 22 3.0 3.0 45 38 - 42 54000
ZT - 2.8×20 2.8 20 4.0 3.7 40 45 - 55 75000
ZT - 3.0×22/25 3.0 22/25 4.0 3.2 75 58 - 70 80000/87000
ZT - 3.2×25 3.2 25 4.0 3.0 110 75 - 90 116000
ZT - 3.6×25 3.6 25 4.0 2.7 132 95 - 110 146000
Applications
  • Agricultural Sector: Drying grains, rice, and corn for proper storage
  • Manufacturing Industry: Drying chemicals, minerals, and food products
  • Construction Industry: Drying sand, gravel, and cement
  • Commercial Laundries: Handling large volumes of laundry efficiently
Customization Options
  • Brand Name: Rotary Dryers
  • Place of Origin: Henan, China
  • Power Supply: Electric or Gas
  • Size: Customizable
  • Application: Drying of Bulk Materials
  • Capacity: Customizable
  • Safety Features: Emergency Stop, Temperature Control

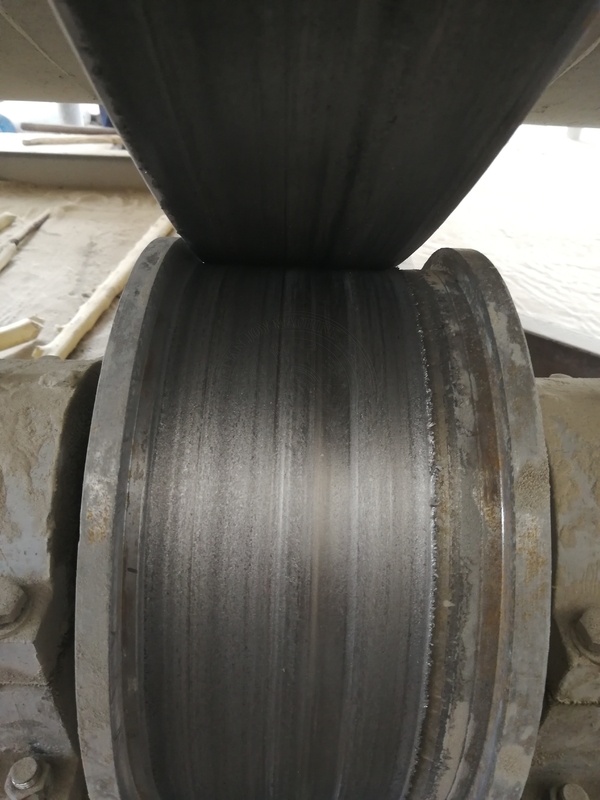

Body Support Customizable Rotary Steam Dryer Lifting Plate Supporting Roller 0
