Chemical Dry Ball Mill High Manganese Lining Plate 0.89mm Dry Mill Grinder

Chemical Dry Ball Mill High Manganese Lining Plate 0.89mm Dry Mill Grinder

Chemical Chemical Dry Ball Mill

Dry Ball Mill High manganese

0.89mm dry mill grinder

Place of Origin:

henan China

Brand Name:

Zoomline

Model Number:

customization

Contact Us
Request A Quote
Product Details
Output Size:
0.074-0.89mm
Warranty Time:
1 Year
Origin:
China
Highlight:

Chemical Chemical Dry Ball Mill

,

Dry Ball Mill High manganese

,

0.89mm dry mill grinder

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
nude packing
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Product Description
Chemical Dry Ball Mill High Manganese Lining Plate 0.89mm Dry Mill Grinder
Product Specifications
Attribute Value
Output Size 0.074-0.89mm
Warranty Time 1 Year
Origin China
Product Overview

The chemical special dry ball mill features high manganese lining plates and steel balls. This industrial-grade equipment is designed for dry grinding processes where no water is added during production.

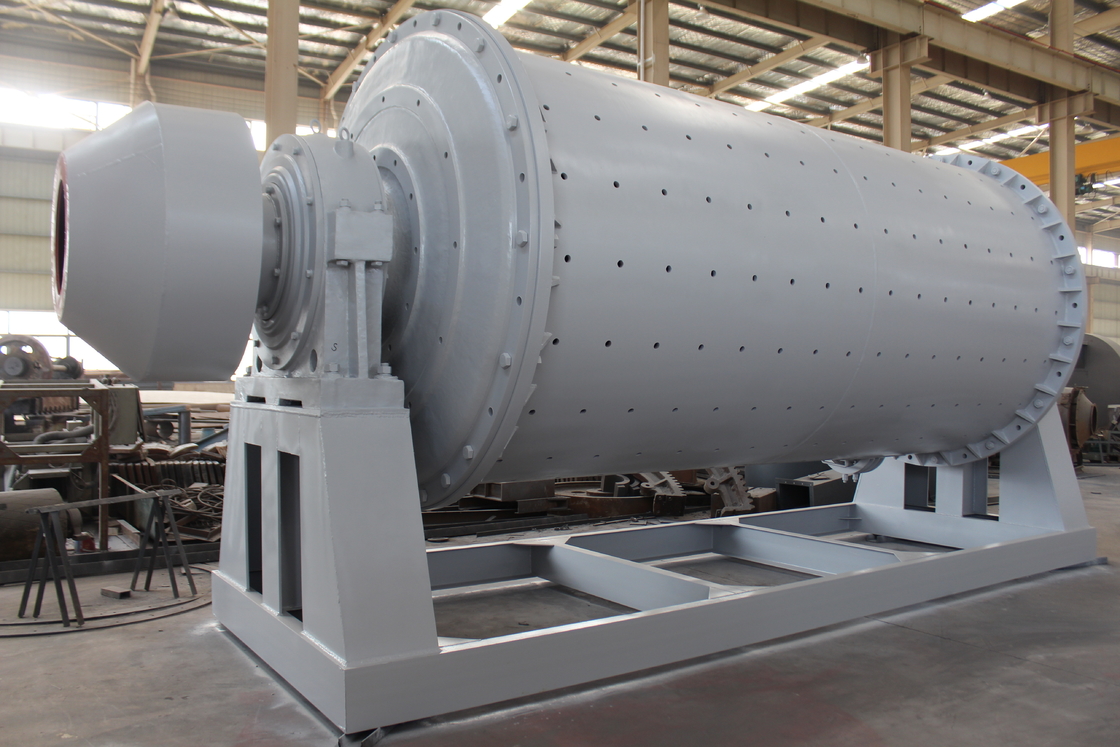

Chemical Dry Ball Mill High Manganese Lining Plate 0.89mm Dry Mill Grinder 0
Equipment Description

The dry ball mill is characterized by its straight-cylinder shape and requires supporting equipment including induced draft devices, dust exhaust pipes, and dust removal systems during operation. Its grinding method differs from wet ball mills.

Primary Applications
  • Grinding raw materials or finished products in cement production
  • Processing refractory materials and chemical raw materials
  • Phosphate fertilizer production
  • Ore grinding in non-ferrous metal selection plants
  • Material grinding in aerated concrete production (cement, lime, desulfurized gypsum, quartz sand, fly ash)
Structural Components

The dry ball mill consists of several key components:

  • Feeding part
  • Discharging part
  • Rotating part
  • Transmission system (including reducer, small transmission gear, motor, and electronic control)

The hollow shaft is constructed from cast steel with removable inner lining. The rotating large gear features casting hobbing, while the cylinder is inlaid with wear-resistant lining for exceptional durability.

Operating Principle

The dry ball mill operates through a horizontal cylinder with hollow shafts for material input/output and a grinding head. The steel cylinder contains grinding bodies (typically steel balls or segments) selected according to material particle size.

When the cylinder rotates, centrifugal force carries the grinding bodies upward before gravity causes them to fall, crushing the material through projectile-like impact.

Technical Specifications
Product Specification (m) Production Capacity (t/h) Mill Type Drive Type Power (kW) Reducer Model Weight (t)
Φ1.5×5.7 3 - 4 Open - circuit Peripheral 130 ZD40 24.7
Φ1.83×7.0 4 - 7 Open - circuit Peripheral 210 ZD60 36
Φ2.2×7.0 8 - 9 Open - circuit Peripheral 300 ZD70 54
Φ2.2×7.5 10 - 11 Open - circuit Peripheral 380 ZD70 63
Φ2.2×8.0 10 - 12 Open - circuit Peripheral 380 ZD70 65
Φ2.2×9.5 14 - 16 Open - circuit Peripheral 475 ZD70 70
Φ2.4×10.0 16 - 19 Open - circuit Peripheral 630 JR75 94.5
Φ2.4×11.0 19 - 21 Open - circuit Peripheral 630 RZD80 99.2
Φ2.4×13.0 21 - 23 Open - circuit Peripheral 800 MBY710 115.2
Φ2.6×13.0 28 - 32 Open - circuit Peripheral 1000 MBY800 148
Φ2.6×13.0 28 - 32 Open - circuit Central 1000 MFY100 101.73
Φ3.0×12.0 32 - 35 Open - circuit Peripheral 1250 MBY900 168.6
Φ3.0×13.0 34 - 37 Open - circuit Peripheral 1400 MBY900 172.26
Φ3.2×13.0 45 - 50 Open - circuit Peripheral 1600 MBY1000 196.26
Φ3.8×13.0 60 - 62 Open - circuit Central 2500 MFY250 204
Φ4.2×13.0 85 - 87 Open - circuit Central 3530 JQS3550 254
