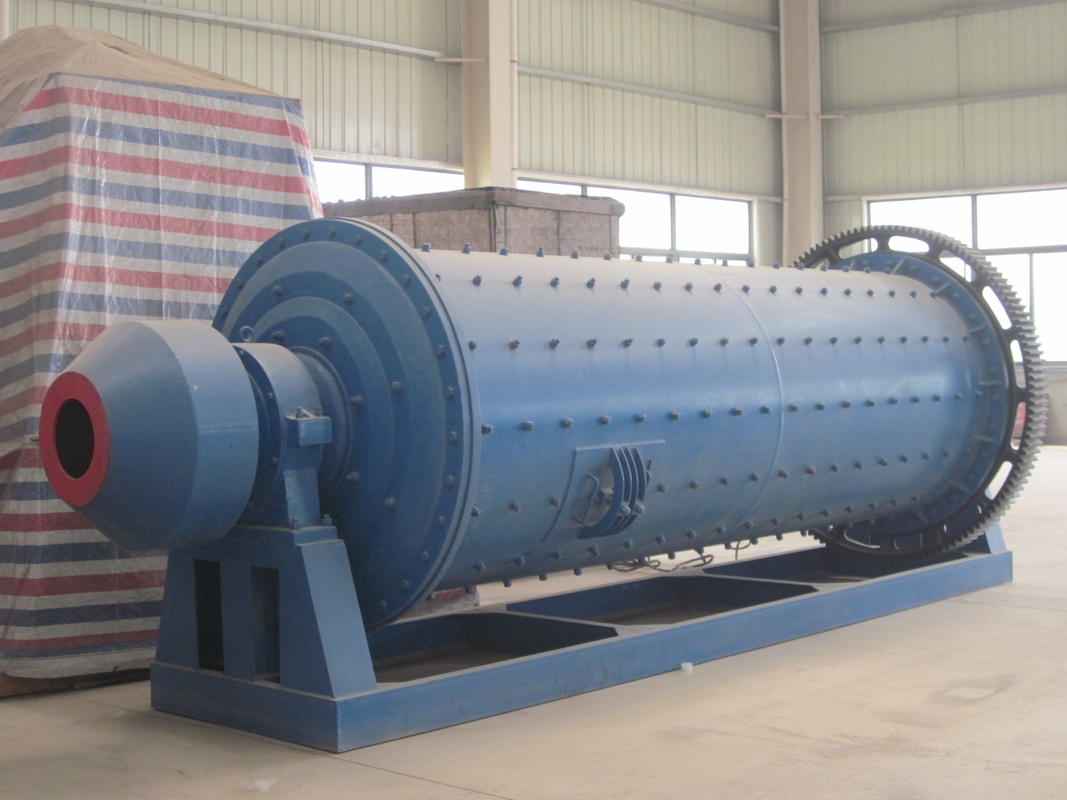

Building 25mm Dry Ball Mill Mineral Dry Grinding Ball Mill

building Dry Ball Mill

25mm Dry Ball Mill

mineral dry grinding ball mill

Place of Origin:

henan China

Brand Name:

Zoomline

Request A Quote

Product Details

Origin:

China

Color:

Customized

Material:

Dry

Type:

Ball Mill

Feeding Size:

≤25mm

Highlight:

building Dry Ball Mill

25mm Dry Ball Mill

mineral dry grinding ball mill

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Wooden box or film

Delivery Time

30-50 days

Payment Terms

T/T

Supply Ability

Negotiable

Mining Industrial Ball Mill Customization Ball Grinding Machine

Get Best Price

3.2 X 13m 3.8 X 13m Cement Ball Mill 380kw 475kw Cement Finish Mill

Get Best Price

Video

Building 25mm Dry Ball Mill Mineral Dry Grinding Ball Mill

Get Best Price

Video

Chemical Dry Ball Mill High Manganese Lining Plate 0.89mm Dry Mill Grinder

Get Best Price

86-0391

Contact Now

Product Description

Building 25mm Dry Ball Mill Mineral Dry Grinding Ball Mill

Product Attributes

Attribute	Value
Origin	China
Color	Customized
Material	Dry
Type	Ball Mill
Feeding Size	≤25mm

Product Description

The dry ball mill is essential equipment for material grinding in industrial production, playing a crucial role in multiple industries including cement, mineral processing, glass, and ceramics.

Structure and Principle

The main body consists of a slowly rotating cylinder mounted on large bearings. The structure includes:

Feeding part
Discharging part
Rotating part
Transmission part (reducer, small transmission gear, motor)

During operation, material enters through the hollow feeding shaft spiral. Lining plates and steel balls inside the bin grind materials through centrifugal force and impact as the cylinder rotates.

Performance Highlights

Efficient operation: Large production capacity with various specifications to meet different production needs
Fine grinding: High crushing ratio with adjustable fineness control
Stable and durable: High operating rate with wear-resistant components for extended service life
Wide applicability: Suitable for dry grinding of various ores and non-metallic materials
Environmental protection: Energy-saving design with reduced dust spillage

Technical Specifications

Product Specification (m)	Production Capacity (t/h)	Mill Type	Drive Type	Power (kW)	Reducer Model	Weight (t)
Φ1.5×5.7	3 - 4	Open-circuit	Peripheral	130	ZD40	24.7
Φ1.83×7.0	4 - 7	Open-circuit	Peripheral	210	ZD60	36
Φ2.2×7.0	8 - 9	Open-circuit	Peripheral	300	ZD70	54
Φ2.2×7.5	10 - 11	Open-circuit	Peripheral	380	ZD70	63
Φ2.2×8.0	10 - 12	Open-circuit	Peripheral	380	ZD70	65
Φ2.2×9.5	14 - 16	Open-circuit	Peripheral	475	ZD70	70
Φ2.4×10.0	16 - 19	Open-circuit	Peripheral	630	JR75	94.5
Φ2.4×11.0	19 - 21	Open-circuit	Peripheral	630	RZD80	99.2
Φ2.4×13.0	21 - 23	Open-circuit	Peripheral	800	MBY710	115.2
Φ2.6×13.0	28 - 32	Open-circuit	Peripheral	1000	MBY800	148
Φ2.6×13.0	28 - 32	Open-circuit	Central	1000	MFY100	101.73
Φ3.0×12.0	32 - 35	Open-circuit	Peripheral	1250	MBY900	168.6
Φ3.0×13.0	34 - 37	Open-circuit	Peripheral	1400	MBY900	172.26
Φ3.2×13.0	45 - 50	Open-circuit	Peripheral	1600	MBY1000	196.26
Φ3.8×13.0	60 - 62	Open-circuit	Central	2500	MFY250	204
Φ4.2×13.0	85 - 87	Open-circuit	Central	3530	JQS3550	254
