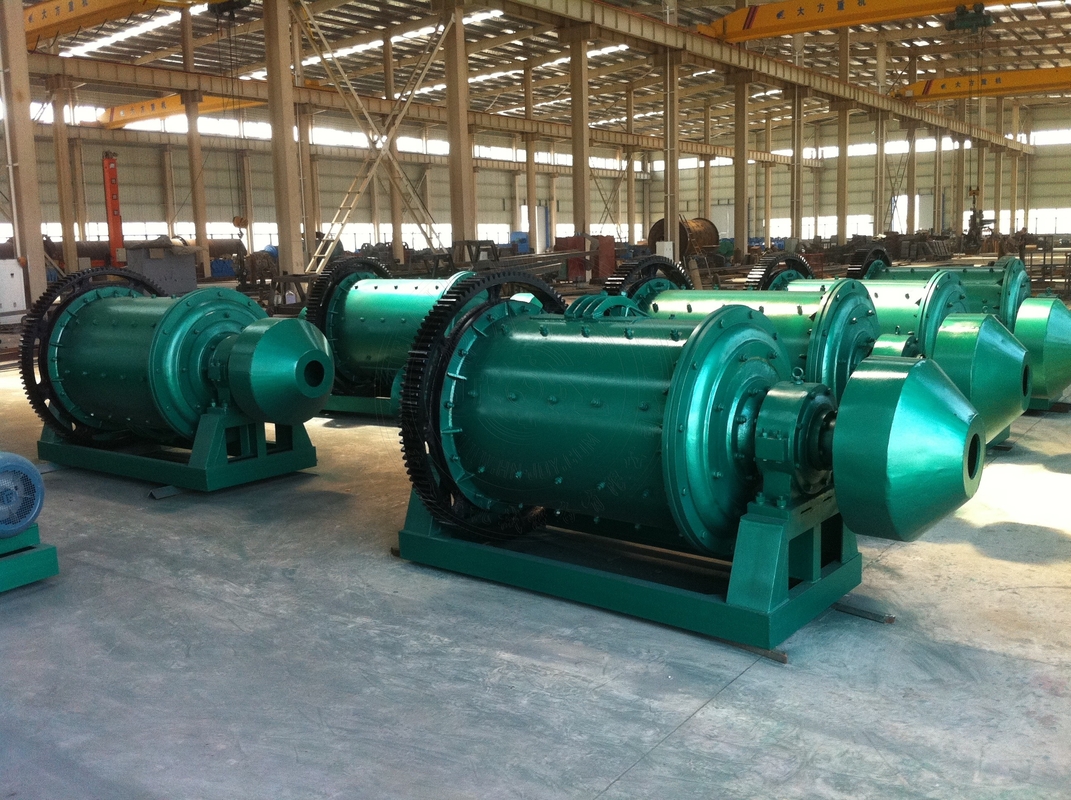

2.2 X 7m Dry Ball Mill Color Customization Dry Grinding Equipment

2.2 x 7m Dry Ball Mill

Dry Ball Mill Color customization

Color customization dry grinding equipment

Place of Origin:

henan China

Brand Name:

Zoomline

Request A Quote

2.2 X 7m Dry Ball Mill Color Customization Dry Grinding Equipment

Product Details

Weight:

54t

Capacity:

9t/h

Type:

Dry Ball Mill

Power:

300kw

Highlight:

2.2 x 7m Dry Ball Mill

Dry Ball Mill Color customization

Color customization dry grinding equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Wooden box or film

Delivery Time

30-50 days

Payment Terms

T/T

Supply Ability

Negotiable

2.4 X 10m Dry Ball Mill Transmission Feeding Discharging Zoomline Dry Grinding Mill

Get Best Price

mixing 20mm Ceramic Ball Mill equipment alumina grinding balls

Get Best Price

Video

2100 X 3000MM Industrial Ball Mill 2400 X 4500MM High Energy Ball Milling

Get Best Price

Mining Industrial Ball Mill Customization Ball Grinding Machine

Get Best Price

86-0391

Contact Now

Product Description

2.2 X 7m Dry Ball Mill Color Customization Dry Grinding Equipment

Product Specifications

Weight	54t
Capacity	9t/h
Type	Dry Ball Mill
Power	300kw

Product Description

Dry Ball Mill 2.2×7m (Cylinder Size Diameter × Length)

Color customization available for this industrial dry ball mill equipment.

Introduction to Dry Ball Mill Equipment

The dry ball mill is named because no water is added during the production process, and it features a straight-cylinder shape. When operating, the dry ball mill needs to work in conjunction with products such as induced draft devices, dust exhaust pipes, and dust removal equipment. Its grinding method is opposite to that of wet ball mills.

Applications

Primarily used for grinding raw materials or finished products such as:

Cement and refractory materials
Chemical raw materials and phosphate fertilizers
Ore grinding before selecting non-ferrous metals in ore dressing plants
In aerated concrete production for grinding cement, lime, desulfurized gypsum, quartz sand, fly ash, and other materials

Performance Characteristics

The ground mineral powder has small particle size and high working efficiency
Double harvest of reducing consumption and increasing production - while reducing unit energy consumption, the output is greatly improved
The design method improves the wear resistance of the machine body, saving significant maintenance costs

Technical Specifications

Product Specification (m)	Production Capacity (t/h)	Mill Type	Drive Type	Power (kW)	Reducer Model	Weight (t)
Φ1.5×5.7	3 - 4	Open-circuit	Peripheral	130	ZD40	24.7
Φ1.83×7.0	4 - 7	Open-circuit	Peripheral	210	ZD60	36
Φ2.2×7.0	8 - 9	Open-circuit	Peripheral	300	ZD70	54
Φ2.2×7.5	10 - 11	Open-circuit	Peripheral	380	ZD70	63
Φ2.2×8.0	10 - 12	Open-circuit	Peripheral	380	ZD70	65
Φ2.2×9.5	14 - 16	Open-circuit	Peripheral	475	ZD70	70
Φ2.4×10.0	16 - 19	Open-circuit	Peripheral	630	JR75	94.5
Φ2.4×11.0	19 - 21	Open-circuit	Peripheral	630	RZD80	99.2
Φ2.4×13.0	21 - 23	Open-circuit	Peripheral	800	MBY710	115.2
Φ2.6×13.0	28 - 32	Open-circuit	Peripheral	1000	MBY800	148
Φ2.6×13.0	28 - 32	Open-circuit	Central	1000	MFY100	101.73
Φ3.0×12.0	32 - 35	Open-circuit	Peripheral	1250	MBY900	168.6
Φ3.0×13.0	34 - 37	Open-circuit	Peripheral	1400	MBY900	172.26
Φ3.2×13.0	45 - 50	Open-circuit	Peripheral	1600	MBY1000	196.26
Φ3.8×13.0	60 - 62	Open-circuit	Central	2500	MFY250	204
Φ4.2×13.0	85 - 87	Open-circuit	Central	3530	JQS3550	254
