Industrial PLC Three Cylinder Dryer 20t/H Screw Conveyor Discharging

Industrial PLC Three Cylinder Dryer 20t/H Screw Conveyor Discharging

Industrial Three Cylinder Dryer

PLC Three Cylinder Dryer 20t/h

20t/h Screw Conveyor Discharging

Place of Origin:

henan China

Brand Name:

Zoomline

Contact Us
Request A Quote
Product Details
Model:
2.7*7.0
Insidedia:
2.7
Capacity(t/h):
20-40
Volume(m3):
40.5
Highlight:

Industrial Three Cylinder Dryer

,

PLC Three Cylinder Dryer 20t/h

,

20t/h Screw Conveyor Discharging

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Product Description

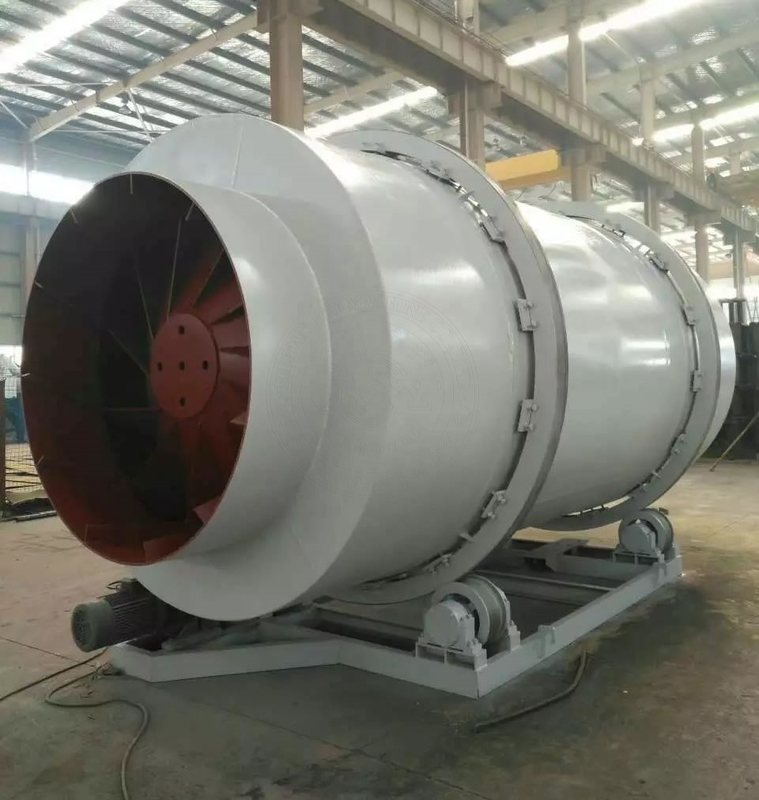

Industrial PLC Three Cylinder Dryer 20t/H Screw Conveyor Discharging
Product Specifications
Attribute Value
Model 2.7*7.0
Inside Diameter 2.7m
Capacity 20-40 t/h
Volume 40.5 m³
Product Description

The Three Cylinder Dryer features an improved internal structure compared to single-cylinder models, enhancing wet material drying efficiency before entry and extending drying time within the machine. Combined with sealing, moisture-retention, and optimized supporting measures, it delivers 50-80% greater production capacity than conventional dryers.

Key performance characteristics include:

  • Evaporation intensity of 120-180kg/m³
  • Standard coal consumption of only 6-8kg/t
  • Advanced technology with optimized operating parameters
  • Simple and reliable operation

This industrial dryer is suitable for processing various materials including slag, clay, coal, iron powder, ore powder, and construction materials like dry-mixed mortar, sand (both dry and wet), and materials for chemical engineering and casting applications.

Technical Parameters
Model Inside Dia. (m) Length (m) Volume (m³) Rotate Speed (r/min) Power (kw) Capacity (t/h) Reducer Type
Φ2.7×7.0 2.7 7.0 40.50 4-10 7.5×4 27-45 XWD-6
Φ3.0×7.0 3.0 7.0 49.46 4-10 7.5×4 30-45 XWD-6
Φ3.2×7.0 3.2 7.0 56.26 4-10 11×4 35-50 XWD-6
Φ3.6×8.0 3.6 8.0 81.38 4-10 15×4 55-75 XWD-8
Note: Technical specifications are subject to change without prior notice.
