Stainless Steel Shell Rotary Kiln 150kg/H - 200kg/H Cement Kiln Refractory

Stainless Steel Shell Rotary Kiln 150kg/H - 200kg/H Cement Kiln Refractory

stainless steel Rotary Kiln

Rotary Kiln 150kg/h

200kg/h cement kiln

Place of Origin:

henan China

Brand Name:

Zoomline

Model Number:

customization

Contact Us
Request A Quote
Product Details
Model:
Yz1225 1632 1845 2044 3226 3529 3560
Heating Method:
Electromagnetic Heating Ornatural Gas Heating
Slope:
3.5-4%
Heat Source:
Coal/Gas/Oil
Cooling Method:
Air/Water Cooling
Feeding Equipment:
Screw Feeder
Fuel Consumption:
150-200kg/h
Temperature:
1000-1500℃
Highlight:

stainless steel Rotary Kiln

,

Rotary Kiln 150kg/h

,

200kg/h cement kiln

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Three sets per month
Product Description
Stainless Steel Shell Rotary Kiln 150kg/H - 200kg/H Cement Kiln Refractory
Product Specifications
Attribute Value
Model Yz1225 1632 1845 2044 3226 3529 3560
Heating Method Electromagnetic Heating Or Natural Gas Heating
Slope 3.5-4%
Heat Source Coal/Gas/Oil
Cooling Method Air/Water Cooling
Feeding Equipment Screw Feeder
Fuel Consumption 150-200kg/h
Temperature 1000-1500℃
Product Description

Cement rotary kiln Choose refractory or stainless steel shell according to temperature requirements.

Cement Rotary Kiln Classification:
  • Types of wet cement kilns: The cement kiln used in wet production is called wet kiln. Wet production makes raw materials into slurry with a water content of 32%~40%. Because it is prepared into a fluid mud, the raw materials are well mixed, the raw material composition is uniform, and the quality of the burned clinker is high, which is the main advantage of wet production.
  • Types of dry cement kilns: Compared with wet rotary kilns, the advantages and disadvantages of dry rotary kilns are exactly the opposite. The dry method makes raw materials into raw material dry powder, and the moisture content is generally less than 1%, so it reduces the heat required to evaporate moisture compared to the wet method. Dry production makes raw materials into dry powder, and its fluidity is worse than mud. Therefore, the raw materials are not mixed well and the composition is uneven.
Performance Characteristics of Cement Rotary Kilns
  • Structural advantages: The structure is strong and the operation is stable.
  • Wide range of applications: In addition to calcining cement clinker, it is also used to calcine clay limestone, dry slag, etc. In the production of refractory materials, rotary kilns are used to calcine raw materials to stabilize their size and increase their strength, and then process them into shape.
  • High environmental benefits: Using cement kilns to incinerate hazardous waste and garbage not only reduces the amount of waste and makes it harmless, but also uses waste as fuel, saves coal powder, and achieves waste resource utilization.

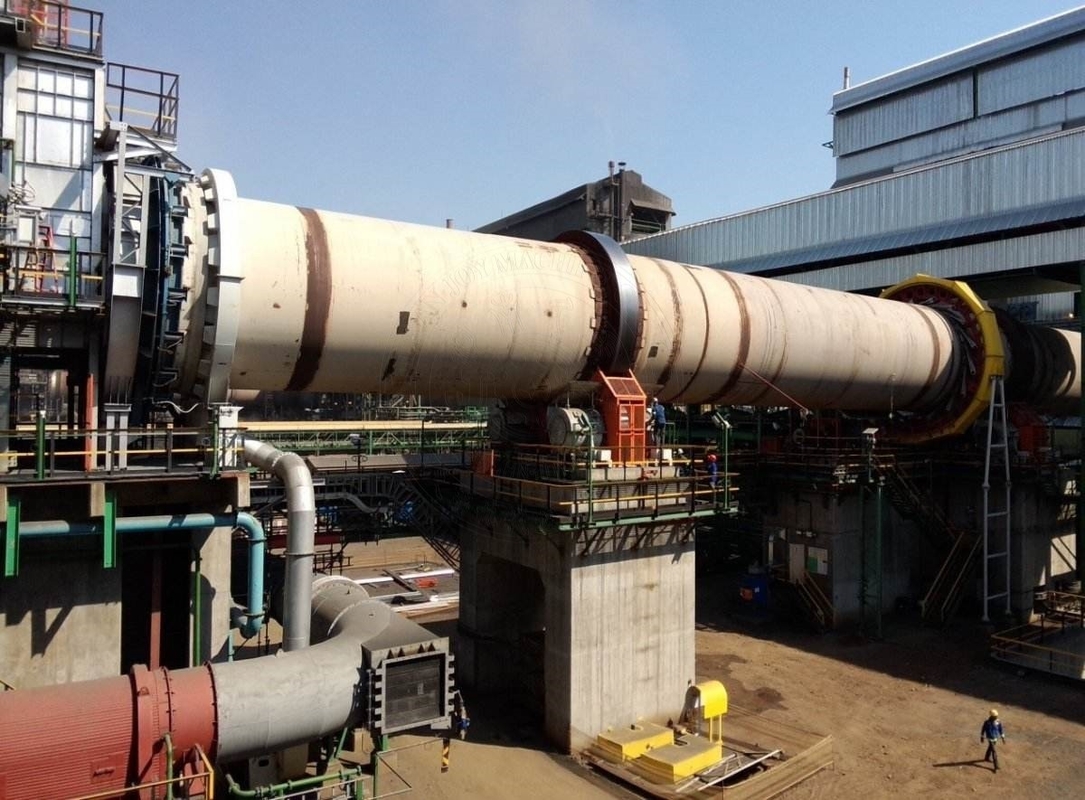

Stainless Steel Shell Rotary Kiln 150kg/H - 200kg/H Cement Kiln Refractory 0
Technical Specifications
Type Model Barrel Diameter (mm) Barrel Length (mm) Slope (%) Capacity (t/h) Speed Motor Power (kW) Weight (t)
YZ1225 1200 25000 4 3 0.35 - 3.55 15 34
YZ1632 1600 32000 4 3.5 0.53 - 5.25 22 46.82
YZ1636 1600 36000 4 1.2 - 1.9 0.26 - 2.61 22 51.023
YZ1828 1800 28000 4 4 0.28 - 2.84 30 59.39
YZ1845 1800 45000 4 4.5 0.28 - 2.84 30 80
YZ1939 1900 39000 4 1.6 - 3.4 0.31 - 2.82 37 70.704
YZ2044 2000 44000 3.5 2.4 - 4 0.22 - 2.26 37 97.135
YZ2245 2200 45000 3.5 3.2 - 5.3 0.23 - 2.25 45 125.462
YZ2550 2500 50000 3.5 6.2 - 7.4 0.68 - 1.45 55 179.606
YZ2555 2500 55000 3.5 7.3 - 9.8 0.79 - 2.38 55 191.203
YZ2820 2800 20000 4 15 - 18 0.8 - 1.45 75 186.373
YZ3028 3000 28000 4 18 - 23 0.8 - 1.45 75 180.737
YZ3060 3000 60000 3.5 16 - 20 0.49 - 2.41 90 272.510
YZ3226 3200 26000 4 22 - 27 0.8 - 1.45 90 185.107
YZ3255 3200 55000 3.5 17 - 23 0.1 - 1.52 75 271.673
YZ3529 3500 29000 4 28 - 40 0.16 - 1.38 110 238.031
YZ3560 3500 60000 3.5 28 - 40 0.65 - 2.25 125 347.872
