Advanced Fluidized Bed Roaster for 5mm Gold Concentrate with Integrated Dust Removal

gold concentrate Fluidized Bed Roasting

5mm Fluidized Bed Roasting

dust removal fluidized bed roaster

Place of Origin:

henan china

Brand Name:

Fluidized Bed Roasting

Request A Quote

Product Details

Maintenance Cost:

Low

Scale-Up Potential:

High

Heat Transfer Method:

Fluidization

Material:

Solid Particles

Operating Cost:

Low

Environmental Impact:

Low

Particle Size Range:

0.1-5 Mm

Automation Level:

High

Highlight:

gold concentrate Fluidized Bed Roasting

5mm Fluidized Bed Roasting

dust removal fluidized bed roaster

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden box or film

Delivery Time

30-50 days

Payment Terms

T/T

Supply Ability

Negotiable

Advanced Fluidized Bed Roaster for 5mm Gold Concentrate with Integrated Dust Removal

Get Best Price

$Good price Fluidized Bed Roaster for Refractory Gold Ore Processing with 12-24 Hour Leaching and Direct 99.99% Pure Gold Production online$

Fluidized Bed Roaster for Refractory Gold Ore Processing with 12-24 Hour Leaching and Direct 99.99% Pure Gold Production

Get Best Price

Particle Size Range 0.1-5 Mm Fluidized Bed Roasting with Low Operating Cost and Air Flow Rate of 10-100 M/s

Get Best Price

Revolutionize Your Roasting Process with High Scale-Up Potential Fluidized-Bed Roasting

Get Best Price

86-0391

Contact Now

Product Description

Gold Concentrate 5mm Fluidized Bed Roasting Dust Removal Fluidized Bed Roaster

Key Features

Intelligent PLC control for superior process accuracy

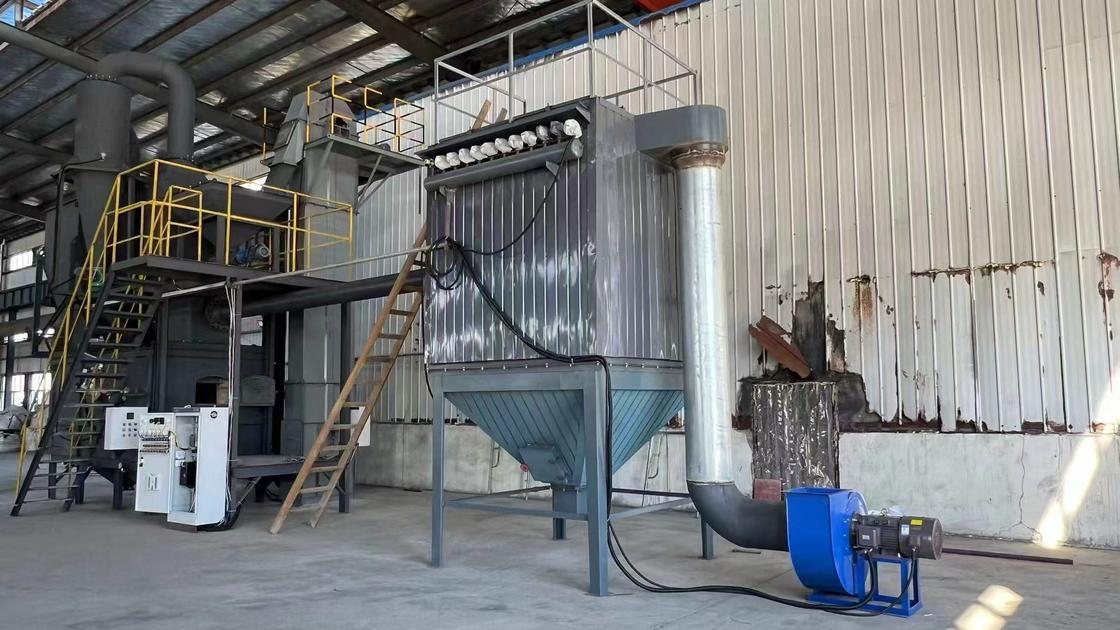

Optional integrated dust removal for cleaner production
Reduced maintenance and operational costs
High automation with strong scalability
Eco-efficient performance with minimal environmental impact
Enhanced heat transfer via advanced fluidization

Technical Specifications

Attribute	Value
Maintenance Cost	Low
Scale-Up Potential	High
Heat Transfer Method	Fluidization
Material	Solid Particles
Operating Cost	Low
Environmental Impact	Low
Particle Size Range	0.1-5 Mm
Automation Level	High

Product Description

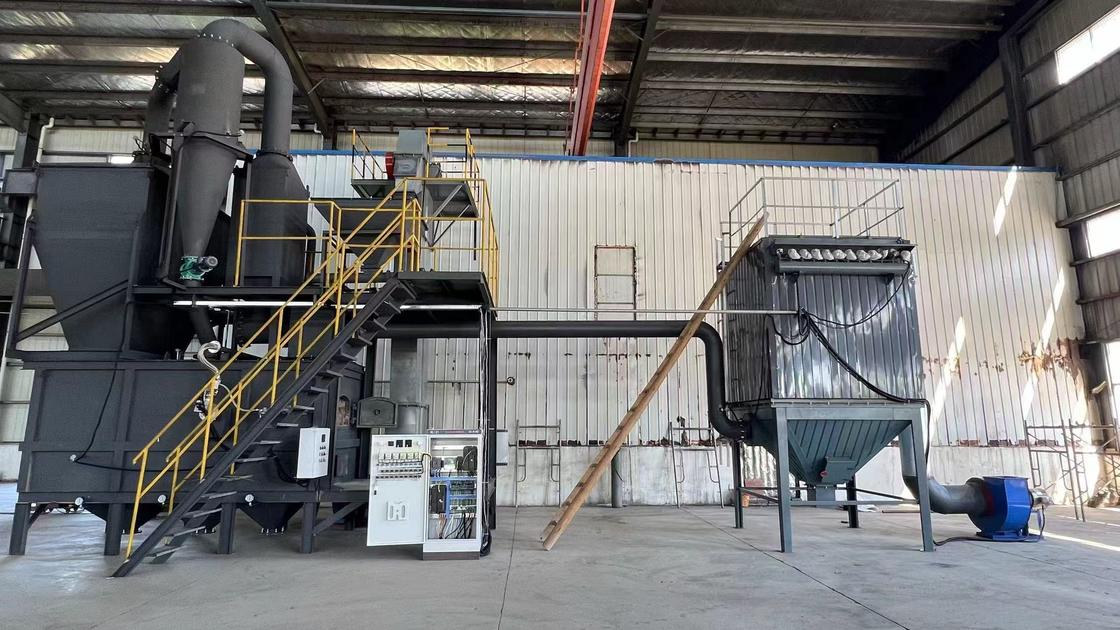

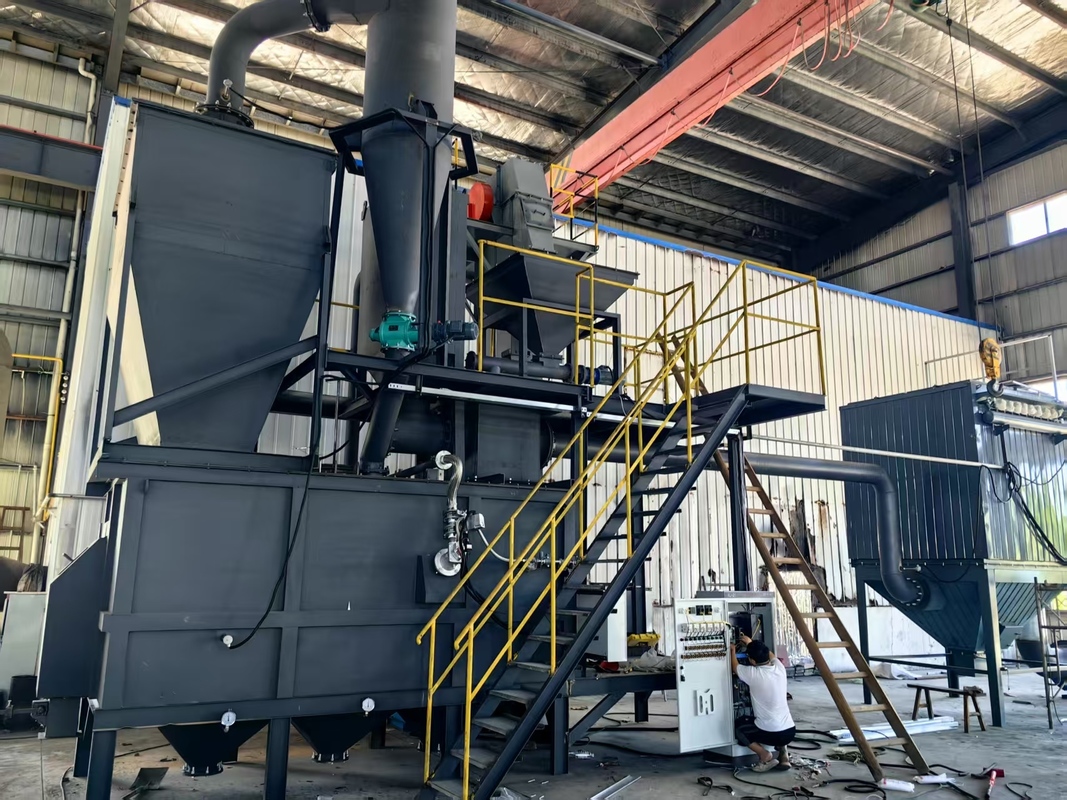

The gold concentrate fluidized bed roaster delivers high-efficiency thermal processing through advanced design and precise control. Its durable construction includes a steel shell insulated with refractory and insulation bricks, along with integrated wind chambers, distribution plates, and caps for uniform air supply.

During operation, hot air is introduced through the wind caps, fluidizing the gold concentrate to enable uniform and efficient roasting. Key advantages include precise control over temperature and atmosphere, effectively removing harmful elements such as arsenic and sulfur.

The two-stage oxidative roasting process ensures thorough purification:

Stage 1: Weak oxidizing/neutral atmosphere at 450–550°C for arsenic removal
Stage 2: Strong oxidizing atmosphere at 650–750°C for sulfur and carbon elimination

Additional benefits include high roasting intensity, low residual sulfur in slag, and full waste heat recovery—collectively lowering operating costs and boosting economic returns.

Model Specifications

Model	Diameter (mm)	Capacity (t/h)	Power (kw)	Weight (t)
ZLFT - 0.6m²	900	0.1 - 1.2	5.5 - 7.5	3.5
ZLFT - 1.1m²	1200	0.3 - 2.7	11 - 15	5.9
ZLFT - 3m²	2000	1.1 - 3.5	22 - 30	17
ZLFT - 5m²	2600	3.8 - 7.9	30 - 45	26
ZLFT - 16m²	4600	15 - 30	90 - 110	55
ZLFT - 32m²	6400	26 - 60	132 - 180	98
