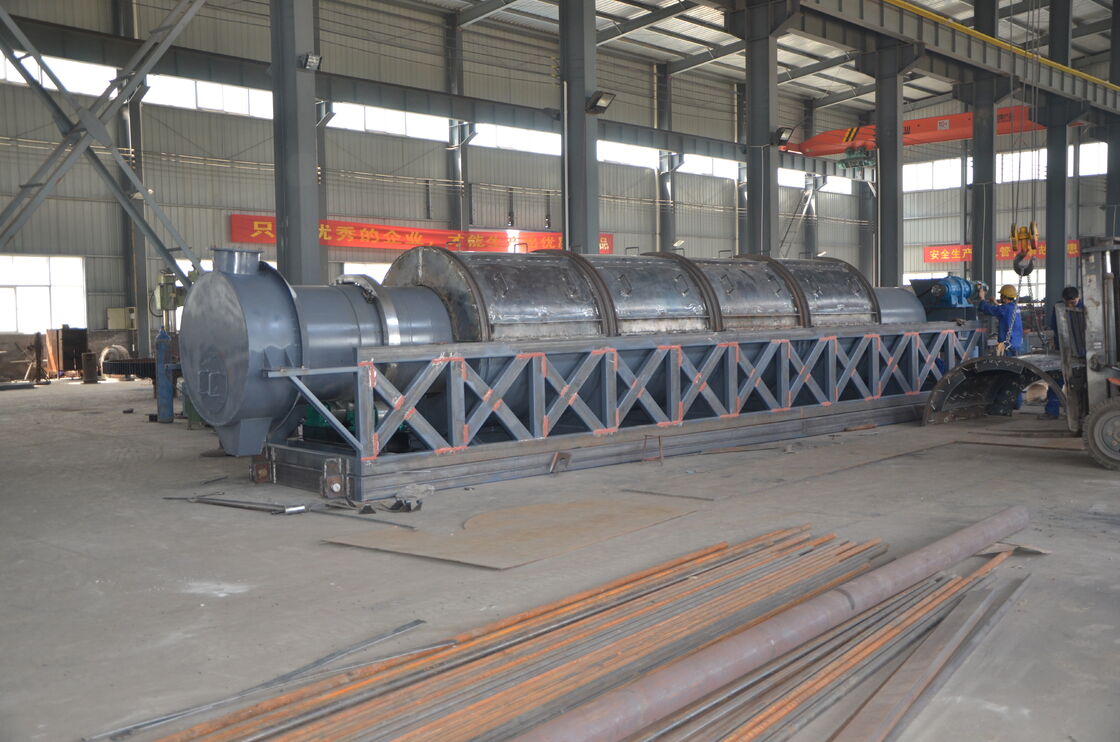

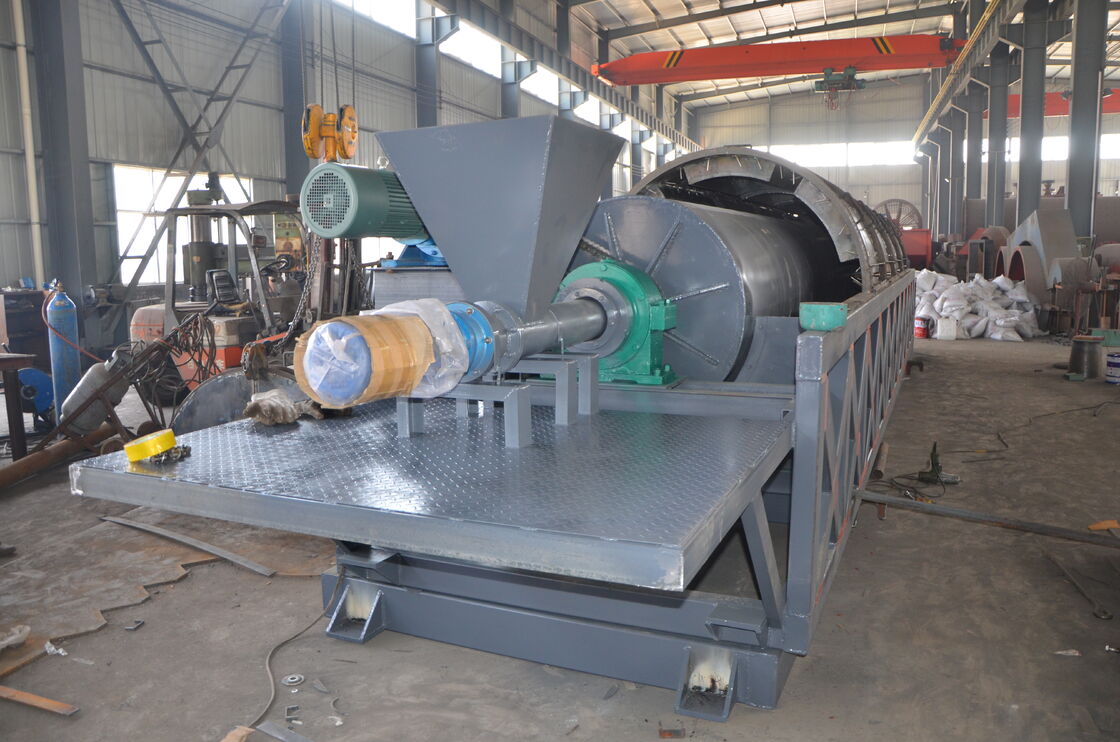

Three Cylinder Dryer with Screw Conveyor Discharge
The Three Cylinder Dryer (Model 2.7×7.0) is a high-performance industrial drying system engineered to deliver uniform and efficient drying across a broad range of materials, including textiles, paper, food products, chemicals, and bulk solids. Featuring a robust three-cylinder design, this horizontal dryer maximizes heat transfer and drying consistency while minimizing energy consumption and processing time.
With customizable cylinder lengths ranging from 6 to 12 meters and diameters typically between 1 and 2 meters, the dryer can be tailored to specific production capacities and material characteristics. It operates at temperatures up to 180°C and offers flexible heating options—steam for rapid heat transfer or thermal oil for stable, gentle drying—ensuring optimal conditions for both delicate and robust materials. An optional hot air heating mode further enhances adaptability.
Equipped with a screw conveyor discharge system, the dryer enables continuous, automated material handling and consistent output. Compatible with multiple fuel sources including coal, gas, oil, and biomass, it supports cost-effective and sustainable operation. Designed for durability, ease of maintenance, and operational control, the Three Cylinder Dryer is a reliable and scalable solution for industrial drying applications requiring precision, efficiency, and versatility.
Product Features
- Product Name: Three Cylinder Dryer
- Model: 2.7×7.0
- Number of Cylinders: 3
- Operating Temperature: Up to 180°C
- Heating Methods: Steam, Thermal Oil, or Hot Air
- Discharge System: Screw Conveyor
- Cylinder Dimensions: Diameter 1-2 m, Length 6-12 m (adjustable)
- Fuel Compatibility: Coal, Gas, Oil, Biomass
- Installation: Horizontal
- Moisture Reduction: From 50-60% to 10-15%
Technical Specifications
| Parameter |
Specification |
| Model |
2.7×7.0 |
| Number of Cylinders |
3 |
| Cylinder Length |
6-12 m (adjustable) |
| Cylinder Diameter |
1-2 m |
| Capacity |
100 kg/h |
| Operating Temperature |
Up to 180°C |
| Moisture Reduction |
50-60% → 10-15% |
| Heating Methods |
Steam, Thermal Oil, Hot Air |
| Discharging Method |
Screw Conveyor |
| Fuel Types |
Coal, Gas, Oil, Biomass |
| Installation Type |
Horizontal |
Industrial Applications
The Three Cylinder Dryer is widely used in pulp and paper production to dry sheets and pulp uniformly without damaging fibers. In the chemical industry, it processes powders, granules, and compounds with precise temperature control.
It is also essential in agricultural processing for drying grains, seeds, and crops post-harvest, preventing spoilage and preserving quality. Additionally, the dryer serves textile manufacturing, food processing, and mineral drying, offering flexible fuel options and scalable capacity to meet diverse industrial drying needs efficiently and sustainably.
