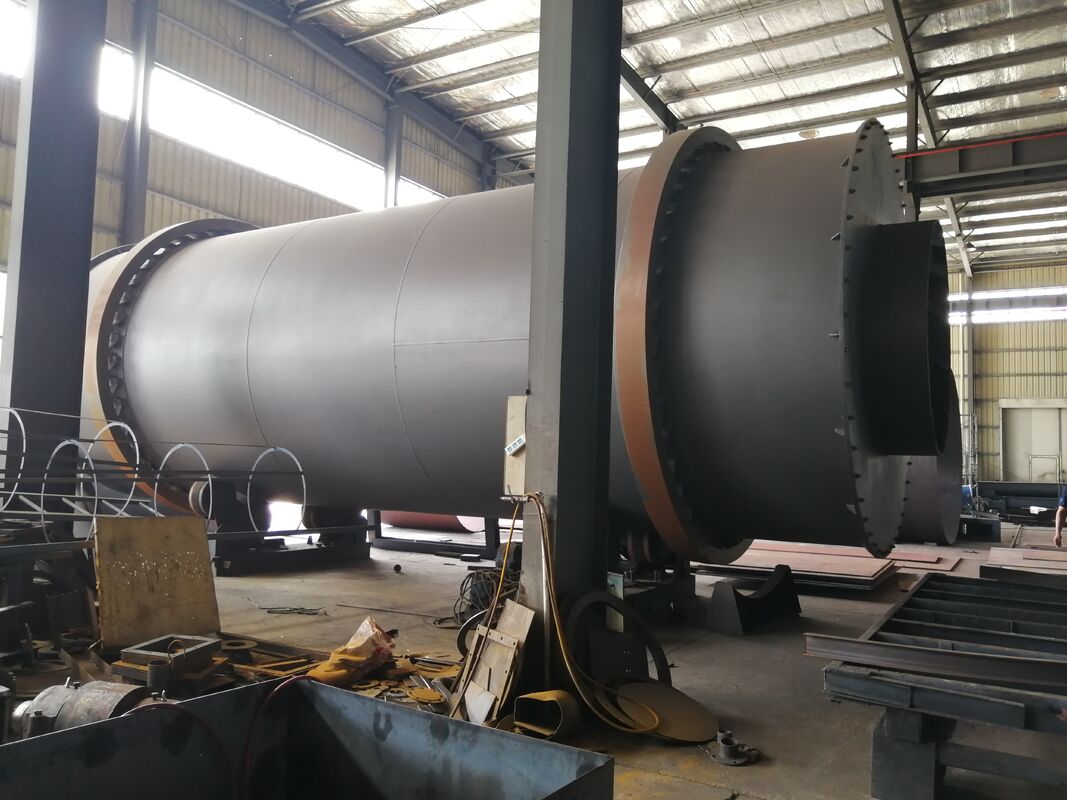

Steam Heatsource Three Cylinder Dryer
Achieves moisture content reduction from 50-60% to 10-15% drying solution
Product Overview
The Three Cylinder Dryer (Model 2.7×7.0) is an advanced industrial drying system engineered for efficient, uniform drying of a wide range of materials, including pulp, paper, chemicals, and food products. Featuring a robust three-cylinder design, this horizontal dryer ensures consistent thermal distribution and effective moisture removal while preserving material integrity.
Constructed with customizable cylinder dimensions—diameter typically ranging from 1 to 2 meters and length adjustable between 6 and 12 meters—the dryer can be tailored to specific production capacities and space requirements. It supports multiple heat sources, including steam, hot air, or thermal oil, allowing flexibility based on process sensitivity and energy availability.
Operating at temperatures up to 180°C, it efficiently reduces material moisture content from 50-60% down to 10-15%. Equipped with a screw conveyor discharge system, the dryer ensures smooth, continuous material flow and reliable output.
Key Features
- Product Name: Three Cylinder Dryer
- Model: 2.7×7.0
- Number of Cylinders: 3
- Operating Temperature: Up to 180°C
- Capacity: 100 kg/h
- Drying Time: 30-60 minutes
- Heating Options: Steam, Hot Air, Thermal Oil
- Discharge Method: Screw Conveyor
- Cylinder Dimensions: Diameter 1-2 m, Length 6-12 m (customizable)
- Fuel Compatibility: Coal, Gas, Oil, Biomass
Technical Specifications
| Model |
2.7×7.0 |
| Number of Cylinders |
3 |
| Cylinder Diameter |
1-2 m (customizable) |
| Cylinder Length |
6-12 m (adjustable) |
| Capacity |
100 kg/h |
| Drying Time |
30-60 min |
| Operating Temperature |
Up to 180°C |
| Moisture Reduction |
From 50-60% to 10-15% |
| Heat Source |
Steam / Hot Air / Thermal Oil |
| Discharge System |
Screw Conveyor |
| Fuel Type |
Coal, Gas, Oil, Biomass |
Industrial Applications
The Three Cylinder Dryer is widely used in pulp and paper manufacturing to remove moisture from paper sheets after pressing, enhancing strength and finish without damaging fibers. Its adjustable cylinder length and multi-source heating ensure gentle, uniform drying suited to various paper grades.
In the chemical industry, the dryer processes powders, granules, and compounds, offering precise temperature control and continuous operation via screw conveyor discharge. It also serves food processing and biomaterial drying, where controlled thermal exposure preserves product quality.
Compatible with diverse fuels and heat mediums, this dryer supports sustainable and cost-effective operation across pulp, chemical, food, and biomass processing plants, providing reliable performance in medium-capacity industrial drying applications.
