Place of Origin:
henan China
Brand Name:
Zoomline
Model Number:
ZT-1.5*12/15 2.4*14 2.4*18 2.8*20 3.2*25
Industrial rotary drum dryers are essential equipment for efficient drying operations in building materials, chemical, cement, slag, and clay industries. These robust dryers are designed to precisely meet various material drying requirements, ensuring optimal moisture content for subsequent production processes.

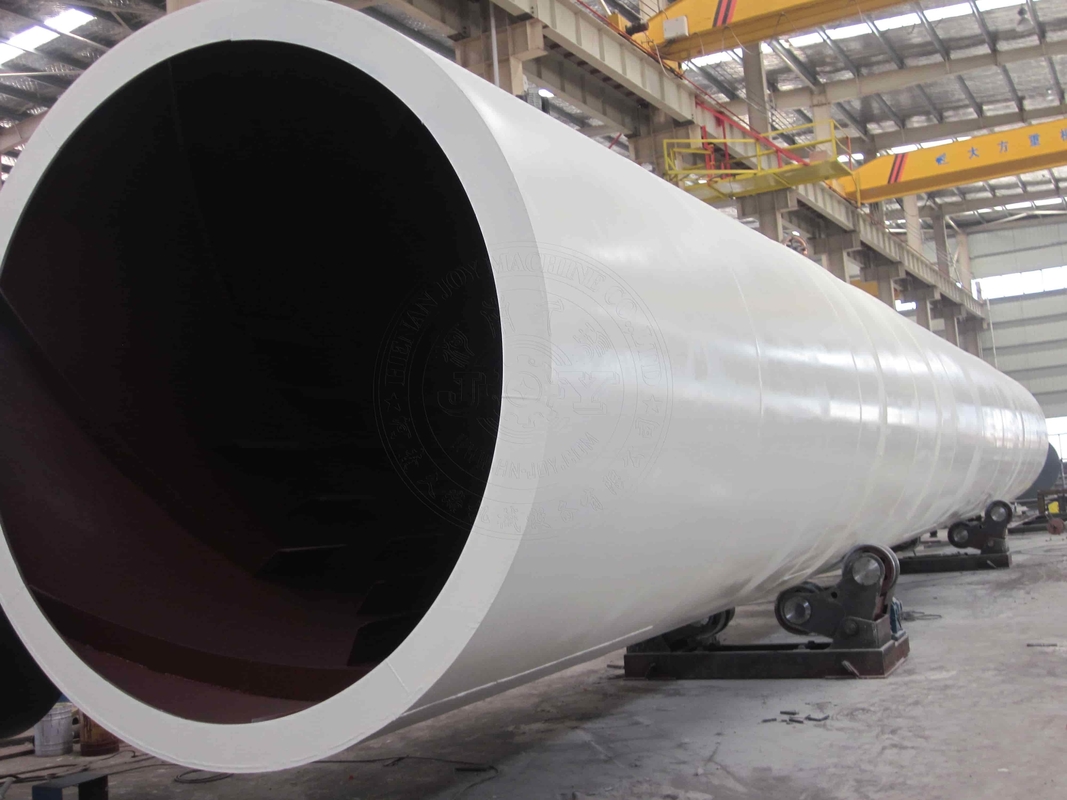

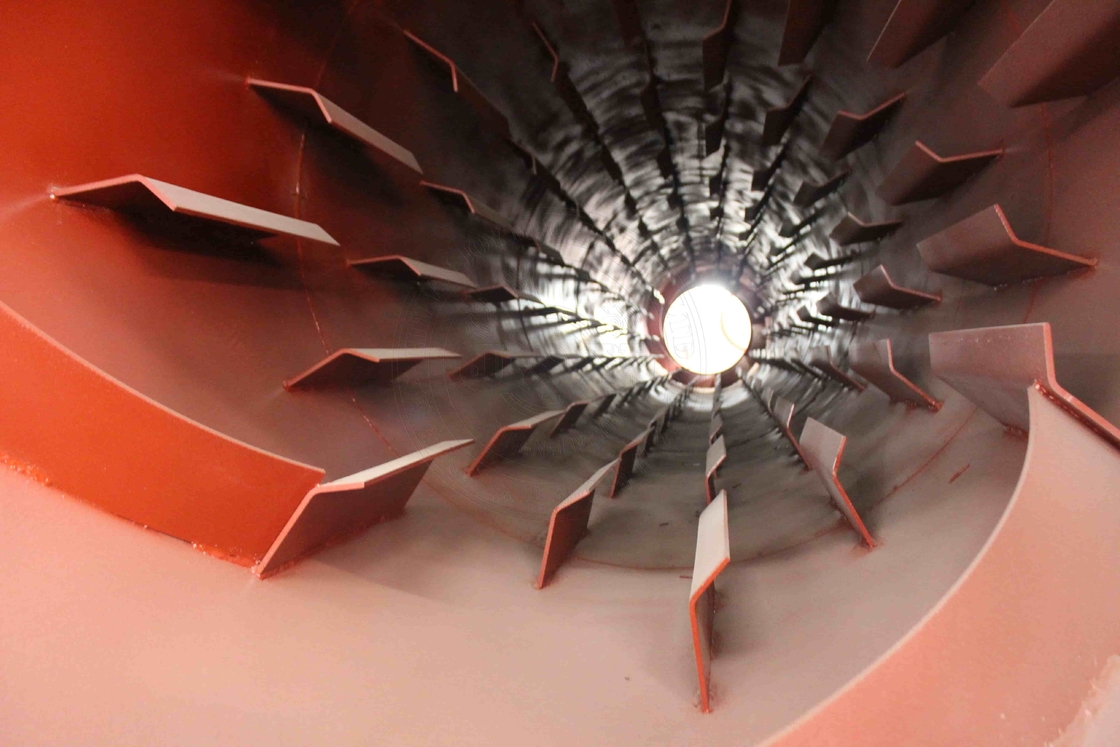

The rotary drum dryer consists of key components including the rotary drum, driving device, feeding/discharging systems, and heating device. Wet materials enter the inclined drum where they are continuously lifted and dropped while high-temperature hot air flows through, ensuring thorough heat exchange and moisture evaporation.
Model | Inside Dia. (m) | Length (m) | Gradient (%) | Rotate Speed (r/min) | Power (kW) | Capacity (t/h) | Weight (kg) |
---|---|---|---|---|---|---|---|
ZT - 1.2×6/8 | 1.2 | 6/8 | 5.0 | 5.8 | 5.5 | 8 - 12 | 9380/10200 |
ZT - 1.5×12/15 | 1.5 | 12/15 | 5.0 | 4.8 | 15 | 12 - 16 | 16450/18240 |
ZT - 1.8×12/14 | 1.8 | 12/14 | 5.0 | 4.5 | 18.5 | 18 - 20 | 20000/21000 |
ZT - 2.2×12/14 | 2.2 | 12/14 | 5.0 | 4.3 | 22 | 22 - 28 | 30500/32000 |
ZT - 2.4×14 | 2.4 | 14 | 4.0 | 3.78 | 30 | 30 - 35 | 46000 |
ZT - 2.4×18 | 2.4 | 18 | 4.0 | 3.0 | 37 | 35 - 40 | 50000 |
ZT - 2.4×22 | 2.4 | 22 | 3.0 | 3.0 | 45 | 38 - 42 | 54000 |
ZT - 2.8×20 | 2.8 | 20 | 4.0 | 3.7 | 40 | 45 - 55 | 75000 |
ZT - 3.0×22/25 | 3.0 | 22/25 | 4.0 | 3.2 | 75 | 58 - 70 | 80000/87000 |
ZT - 3.2×25 | 3.2 | 25 | 4.0 | 3.0 | 110 | 75 - 90 | 116000 |
ZT - 3.6×25 | 3.6 | 25 | 4.0 | 2.7 | 132 | 95 - 110 | 146000 |
Effectively dries ores (coal, iron, copper) to improve grade and reduce transportation costs.
Precisely controls drying of chemical raw materials (inorganic salts, pigments, resins) to maintain product quality.
Extends shelf life of agricultural products while maintaining high hygiene standards for food safety.
Removes moisture from cement raw materials, sand, and gypsum to enhance product strength and stability.
We offer comprehensive customization based on your specific material characteristics (composition, moisture content, particle size) and production site conditions (available space, energy type, environmental requirements).
Each rotary dryer is securely packaged in sturdy cardboard with protective padding. Standard shipping via reputable carriers (FedEx/UPS) includes tracking information.
