Customizable Drying Rotary Dryer Industrial Rotary Dryer System

Customizable Drying Rotary Dryer Industrial Rotary Dryer System

industrial rotary dryer system

customizable rotary dryer system

customizable industrial rotary dryer

Place of Origin:

henan China

Brand Name:

Zoomline

Model Number:

ZT-1.5*12 1.8*14 2.4*18

Contact Us
Request A Quote
Customizable Drying Rotary Dryer Industrial Rotary Dryer System Customizable Drying Rotary Dryer Industrial Rotary Dryer System Customizable Drying Rotary Dryer Industrial Rotary Dryer System Customizable Drying Rotary Dryer Industrial Rotary Dryer System Customizable Drying Rotary Dryer Industrial Rotary Dryer System
Product Details
Capacity:
Customizable
Size:
Customizable
Heating Method:
Direct Or Indirect
Application:
Drying Of Bulk Materials
Safety Features:
Emergency Stop, Temperature Control, Etc.
Speed:
Adjustable
Material:
Carbon Steel
Power Supply:
Electric Or Gas
Highlight:

industrial rotary dryer system

,

customizable rotary dryer system

,

customizable industrial rotary dryer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden box or film
Delivery Time
30-50 days
Payment Terms
T/T
Supply Ability
Negotiable
Related Products
Good price Customizable Rotary Dryers Temperature Control Electric Rotary Dryer online

Customizable Rotary Dryers Temperature Control Electric Rotary Dryer

Get Best Price
Good price 5KW Electric Heating Three Cylinder Dryer For Drying 50C - 150C online

5KW Electric Heating Three Cylinder Dryer For Drying 50C - 150C

Get Best Price
Good price 220V 100Kg/H Three Cylinder Dryer Stainless Steel Cylinder Dryer online

220V 100Kg/H Three Cylinder Dryer Stainless Steel Cylinder Dryer

Get Best Price
Good price Industrial PLC Three Cylinder Dryer 20t/H Screw Conveyor Discharging online

Industrial PLC Three Cylinder Dryer 20t/H Screw Conveyor Discharging

Get Best Price
Contact Us
86-0391
Contact Now
Product Description
Customizable Drying Rotary Dryer Industrial Rotary Dryer System
Key Specifications
Attribute Value
Capacity Customizable
Size Customizable
Heating Method Direct or Indirect
Application Drying of Bulk Materials
Safety Features Emergency Stop, Temperature Control
Speed Adjustable
Material Carbon Steel / Stainless Steel
Power Supply Electric or Gas
Warranty 1 Year
Installation Stationary or Portable
Industrial Rotary Dryer Overview
Our rotary drum dryer serves as core equipment for industrial drying applications, precisely engineered to meet diverse material drying requirements. This system ensures efficient, stable drying operations to achieve optimal moisture content for subsequent production processes.
Working Principle
The rotary dryer operates through a carefully designed system comprising a rotating drum, driving mechanism, feeding/discharging devices, and heating components. Wet materials enter the inclined drum where they are continuously lifted and dropped while exposed to high-temperature airflow. This process facilitates rapid moisture evaporation and uniform drying before discharge.
Performance Advantages
  • High-Efficiency Drying: Unique drum design maximizes material-air contact for rapid moisture removal across various material types
  • Uniform Drying: Continuous rotation ensures consistent drying results with minimal quality variation
  • Material Adaptability: Adjustable parameters accommodate heat-sensitive materials and high-moisture content
  • Energy Efficient: Optimized heat exchange system minimizes energy waste while maintaining performance
  • Environmentally Compliant: Integrated dust collection reduces particulate emissions
Technical Specifications
Model Inside Dia. (m) Length (m) Gradient (%) Rotate Speed (r/min) Power (kW) Capacity (t/h) Weight (kg)
ZT-1.2×6/8 1.2 6/8 5.0 5.8 5.5 8-12 9380/10200
ZT-1.5×12/15 1.5 12/15 5.0 4.8 15 12-16 16450/18240
ZT-1.8×12/14 1.8 12/14 5.0 4.5 18.5 18-20 20000/21000
ZT-2.2×12/14 2.2 12/14 5.0 4.3 22 22-28 30500/32000
ZT-2.4×14 2.4 14 4.0 3.78 30 30-35 46000
ZT-2.4×18 2.4 18 4.0 3.0 37 35-40 50000
ZT-2.4×22 2.4 22 3.0 3.0 45 38-42 54000
ZT-2.8×20 2.8 20 4.0 3.7 40 45-55 75000
ZT-3.0×22/25 3.0 22/25 4.0 3.2 75 58-70 80000/87000
ZT-3.2×25 3.2 25 4.0 3.0 110 75-90 116000
ZT-3.6×25 3.6 25 4.0 2.7 132 95-110 146000

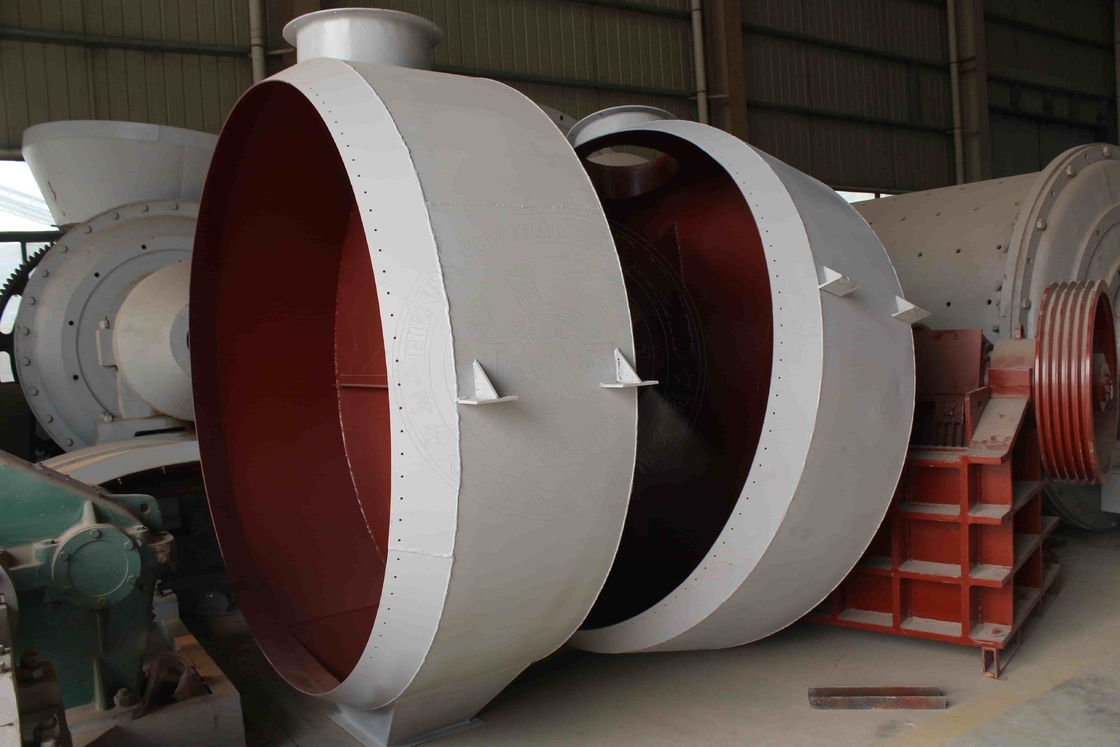

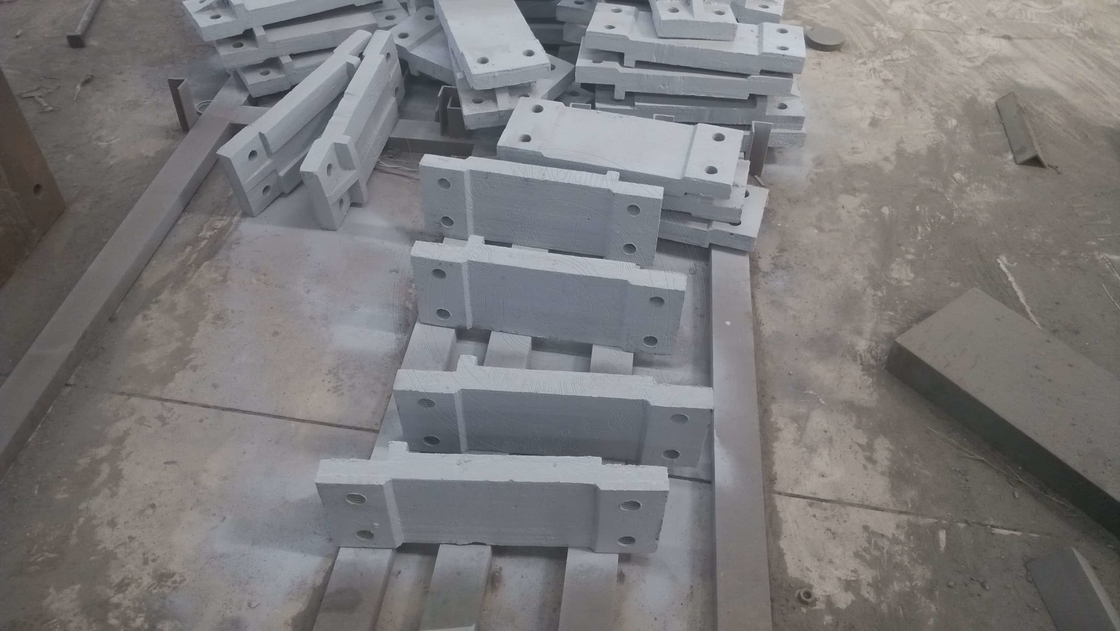

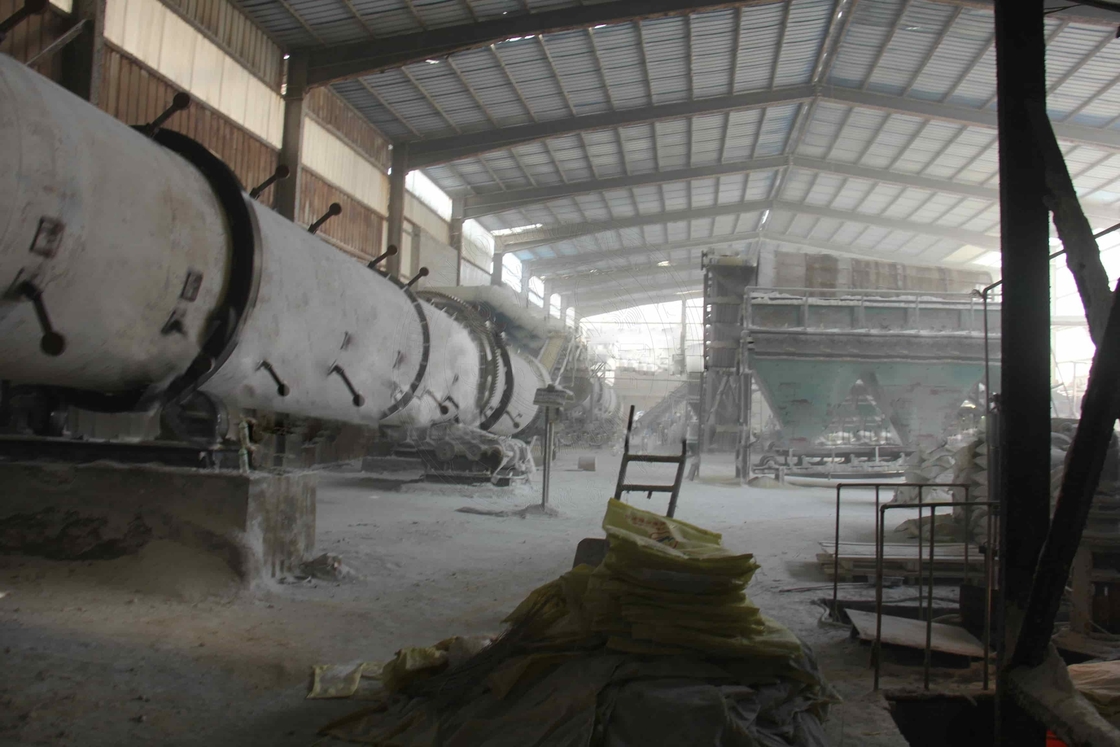

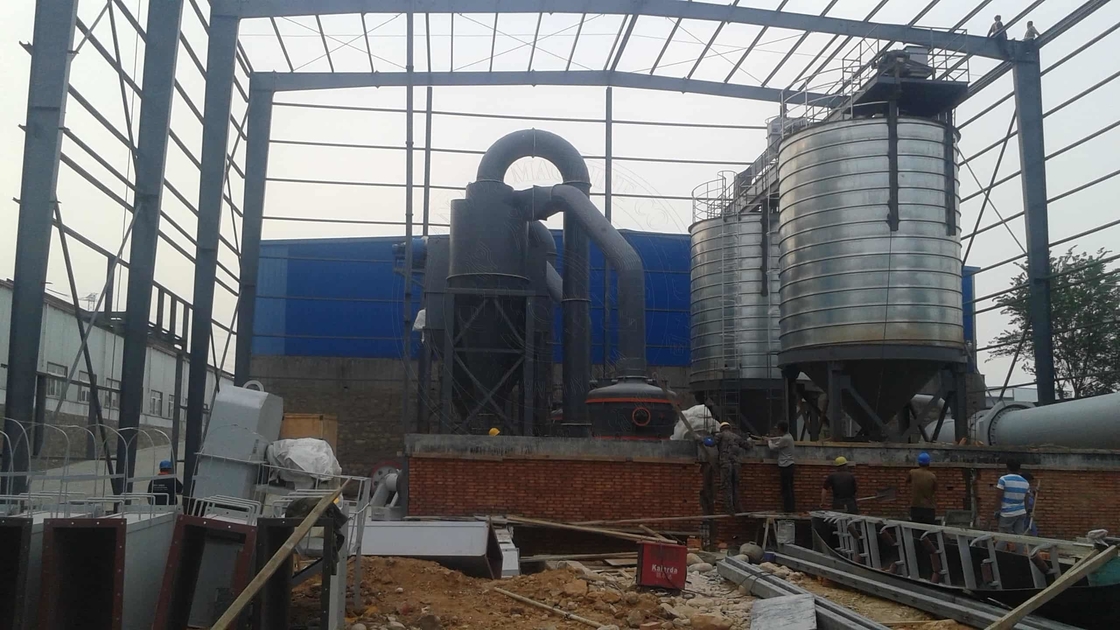

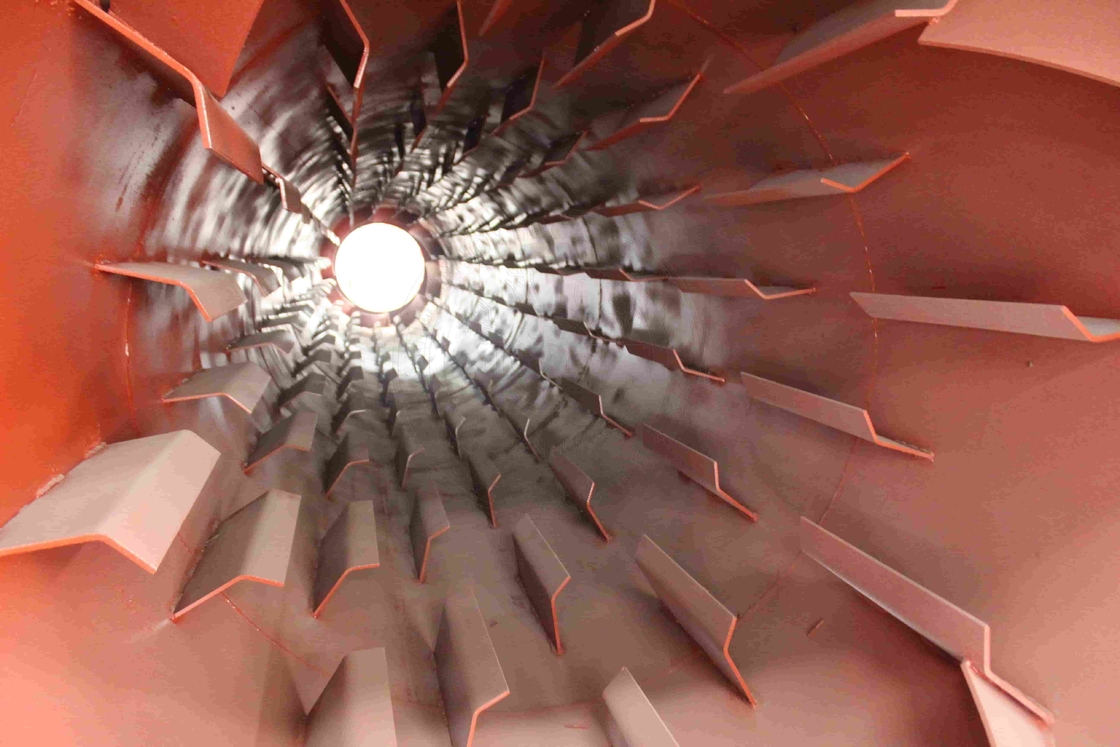

Product Images
Customizable Drying Rotary Dryer Industrial Rotary Dryer System 0 Customizable Drying Rotary Dryer Industrial Rotary Dryer System 1
Customization Options
Our rotary dryers offer extensive customization including size, heating method (direct/indirect), control system (manual/automatic), and installation configuration (stationary/portable). Manufactured in Henan, China, these systems are built for durability and long-term performance in demanding industrial environments.
Note: Technical specifications subject to change without prior notice. Contact our engineering team for project-specific requirements.
