Place of Origin:
henan China
Brand Name:
Zoomline
Industrial rotary drum dryers provide efficient drying solutions for bulk materials across multiple industries. With customizable capacity and heating methods, these dryers offer precise moisture control for optimal production results.
Model | Inside Dia. (m) | Length (m) | Gradient (%) | Rotate Speed (r/min) | Power (kw) | Capacity (t/h) | Weight (kg) |
---|---|---|---|---|---|---|---|
ZT - 1.2×6/8 | 1.2 | 6/8 | 5.0 | 5.8 | 5.5 | 8 - 12 | 9380/10200 |
ZT - 1.5×12/15 | 1.5 | 12/15 | 5.0 | 4.8 | 15 | 12 - 16 | 16450/18240 |
ZT - 1.8×12/14 | 1.8 | 12/14 | 5.0 | 4.5 | 18.5 | 18 - 20 | 20000/21000 |
ZT - 2.2×12/14 | 2.2 | 12/14 | 5.0 | 4.3 | 22 | 22 - 28 | 30500/32000 |
ZT - 2.4×14 | 2.4 | 14 | 4.0 | 3.78 | 30 | 30 - 35 | 46000 |
Note: Any change of technical data shall not be advised additionally.

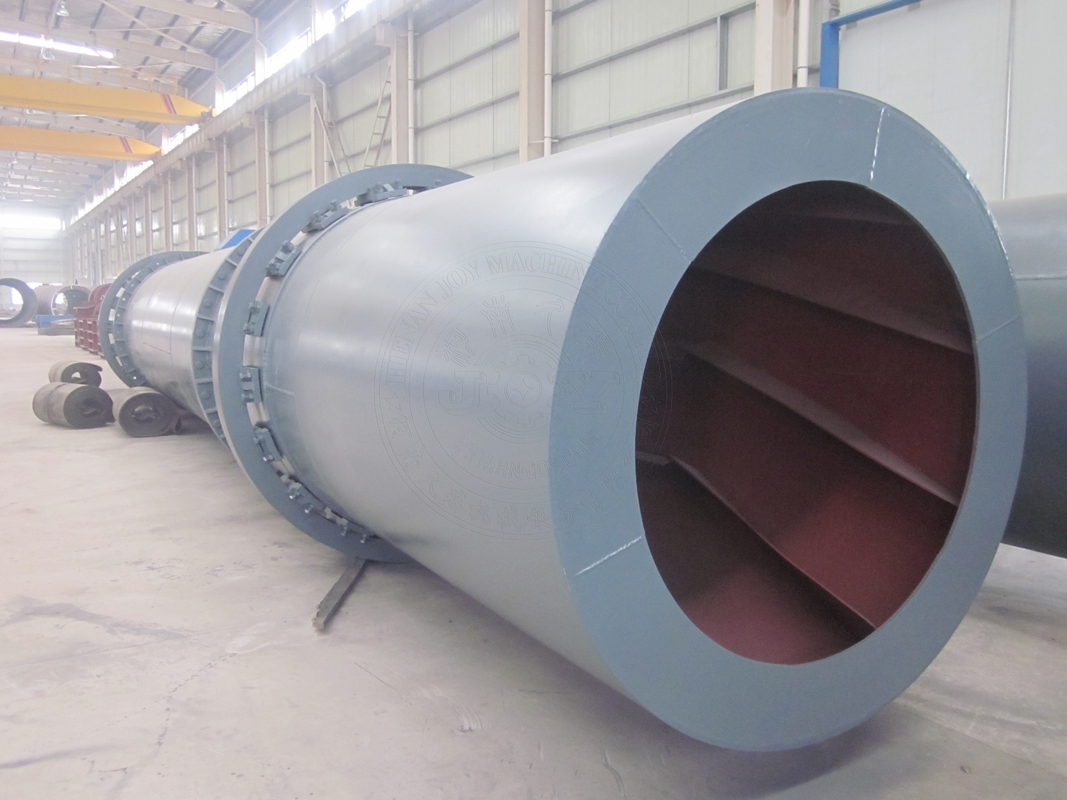

The rotary drum dryer consists of a rotating drum, driving device, feeding/discharging systems, and heating components. Wet materials enter the inclined drum where they are continuously lifted and dropped while high-temperature air flows through, evaporating moisture which exits as vapor with the exhaust air.

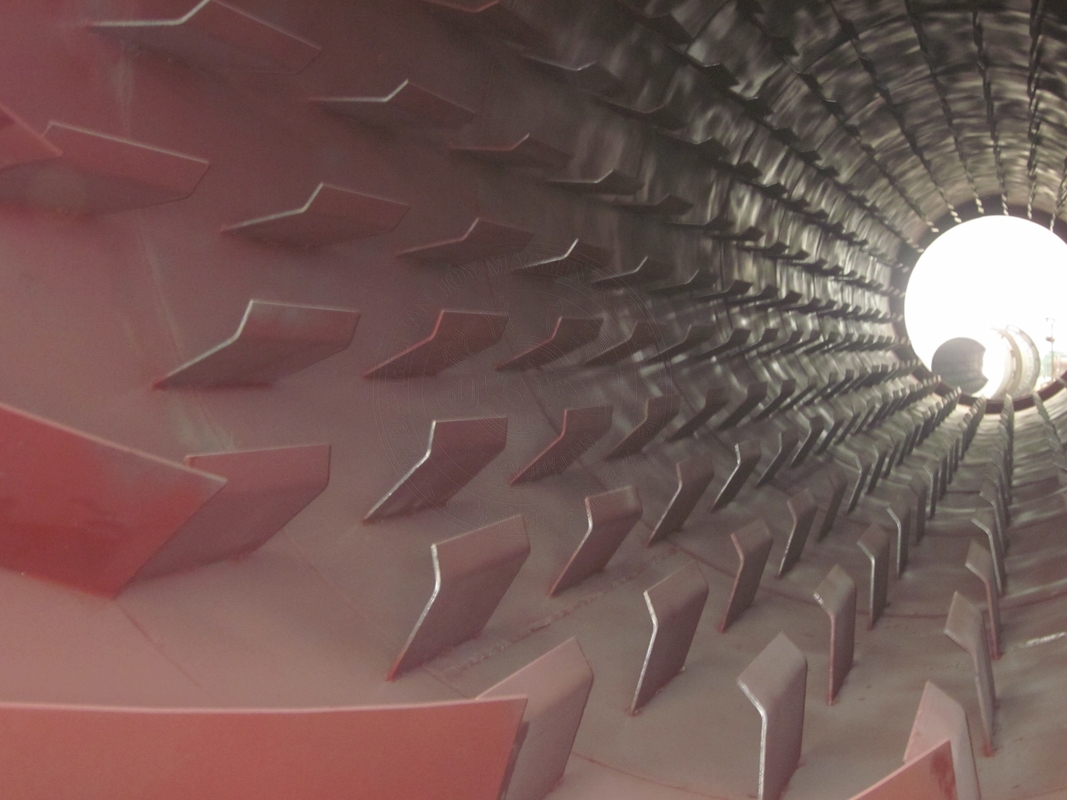

Unique drum design ensures full material-air contact for rapid moisture removal, handling both large-volume blocks and viscous pastes efficiently.
Continuous rotation prevents uneven drying, delivering consistent moisture levels across all material batches.
Adjustable temperature and rotation speed accommodate heat-sensitive materials while effectively drying high-moisture content products.
Optimized heat exchange system minimizes energy loss, with dust collection systems reducing environmental impact.
Our engineering team collaborates with clients to design dryers tailored to specific material properties (composition, moisture content, heat sensitivity) and production requirements (capacity, space constraints, energy sources).
Custom options include:
