Product Description

2.6 X 13m Ball Milling Process Large Gear Ring Ball Mill Equipment

Product Attributes

Color

Customized

Origin

China

Product Description

The 2.6×13m Dry Ball Mill is a cylindrical grinding equipment that operates without water addition during production. Designed for industrial applications, it requires supporting systems including induced draft devices, dust exhaust pipes, and dust removal equipment.

Key Applications

Grinding raw materials for cement production
Processing refractory materials and chemical raw materials
Phosphate fertilizer production
Ore grinding in non-ferrous metal dressing plants
Material preparation for aerated concrete (cement, lime, desulfurized gypsum, quartz sand, fly ash)

Working Principle

The dry ball mill consists of a horizontal cylinder with hollow shafts for material feeding/discharging and grinding heads. The steel cylinder contains grinding media (steel balls or segments) of various diameters. As the cylinder rotates, the grinding media is lifted and then falls under gravity, crushing the material through impact.

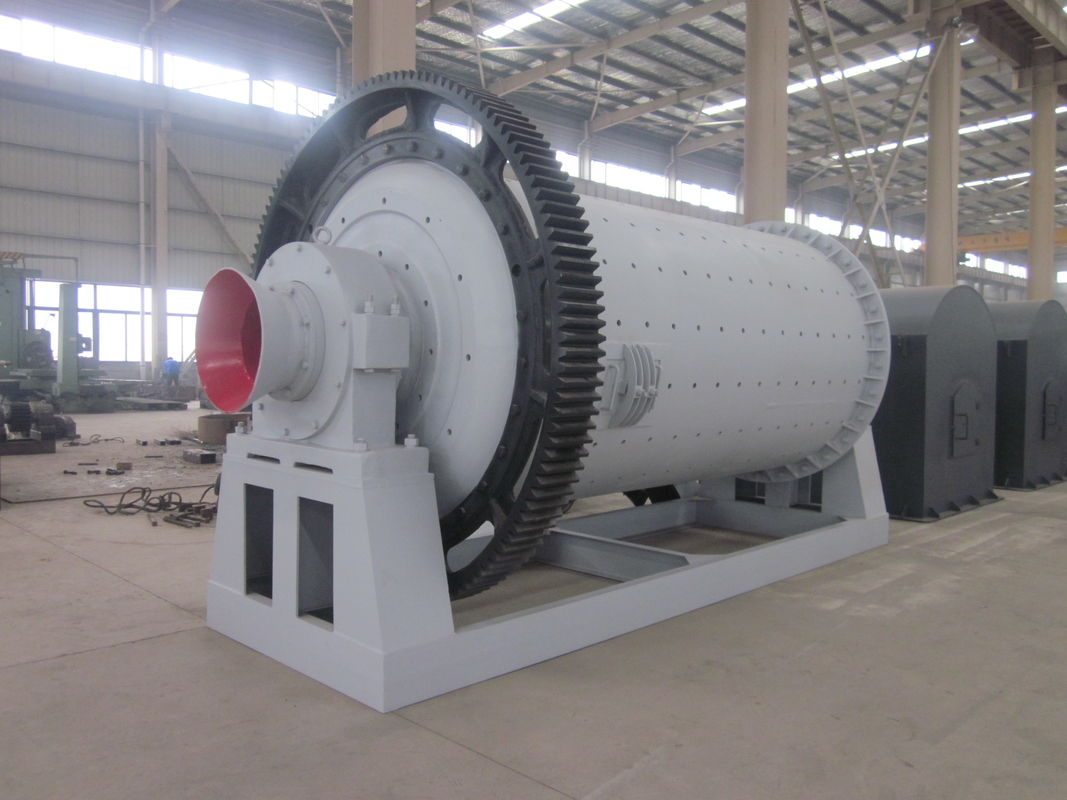

2.6×13m Ball Mill Equipment with large gear ring support system

Technical Specifications

极速赛车开奖直播官网

Product Specification (m)	Production Capacity (t/h)	Mill Type	Drive Type	Power (kW)	Reducer Model	Weight (t)
Φ1.5×5.7	3 - 4	Open-circuit	Peripheral	130	ZD40	24.7
Φ1.83×7.0	4 - 7	Open-circuit	Peripheral	210	ZD60	36
Φ2.2×7.0	8 - 9	Open-circuit	Peripheral	300	ZD70	54
Φ2.2×7.5	10 - 11	Open-circuit	Peripheral	380	ZD70	63
Φ2.2×8.0	10 - 12	Open-circuit	Peripheral	380	ZD70	65
Φ2.2×9.5	14 - 16	Open-circuit	Peripheral	475	ZD70	70
Φ2.4×10.0	16 - 19
