Name: High Uniformity Fluid Bed Roaster 10 - 100M/S Solid Particle Roasting
Brand: Henan Zoomline Machinery Manufacturing co. Ltd
SKU: supports customization.
Availability: InStock

Home > products > Fluidized Bed Roasting >

High Uniformity Fluid Bed Roaster 10 - 100M/S Solid Particle Roasting

High Uniformity fluid bed roaster

fluid bed roaster 10M/s

100M/s Solid Particle Roasting

Place of Origin:

henan China

Brand Name:

Zoomline

Model Number:

supports customization.

Request A Quote

Product Details

Residence Time:

5-30 Minutes

Energy Efficiency:

High

Uniformity Of Roasting:

High

Particle Size Range:

0.1-5 Mm

Air Flow Rate:

10-100 M/s

Material:

Solid Particles

Maintenance Cost:

Low

Temperature Range:

300-1000°C

Highlight:

High Uniformity fluid bed roaster

fluid bed roaster 10M/s

100M/s Solid Particle Roasting

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Wooden box or film

Delivery Time

30-50 days

Payment Terms

T/T

Supply Ability

Negotiable

Boiling Fluidized Bed Roasting 5m2 16m2 32m2 Custom Circulating Fluid Bed

Get Best Price

Video

Gold Concentrate Fluid Bed Incinerator Desulfurization Oxidation Fluidised Bed Incineration

Get Best Price

$Good price 5min Pyrite Fluid Bed Roaster Internal Refractory High Alumina Brick Industrial Roaster online$ Video

5min Pyrite Fluid Bed Roaster Internal Refractory High Alumina Brick Industrial Roaster

Get Best Price

Video

Environmentally Friendly Fluid Bed Roaster 30min Chemical Raw Materials Furnace

Get Best Price

86-0391

Contact Now

Product Description

High Uniformity Fluid Bed Roaster 10 - 100M/S Solid Particle Roasting

Product Specifications

Attribute	Value
Residence Time	5-30 Minutes
Energy Efficiency	High
Uniformity Of Roasting	High
Particle Size Range	0.1-5 Mm
Air Flow Rate	10-100 M/s
Material	Solid Particles
Maintenance Cost	Low
Temperature Range	300-1000°C

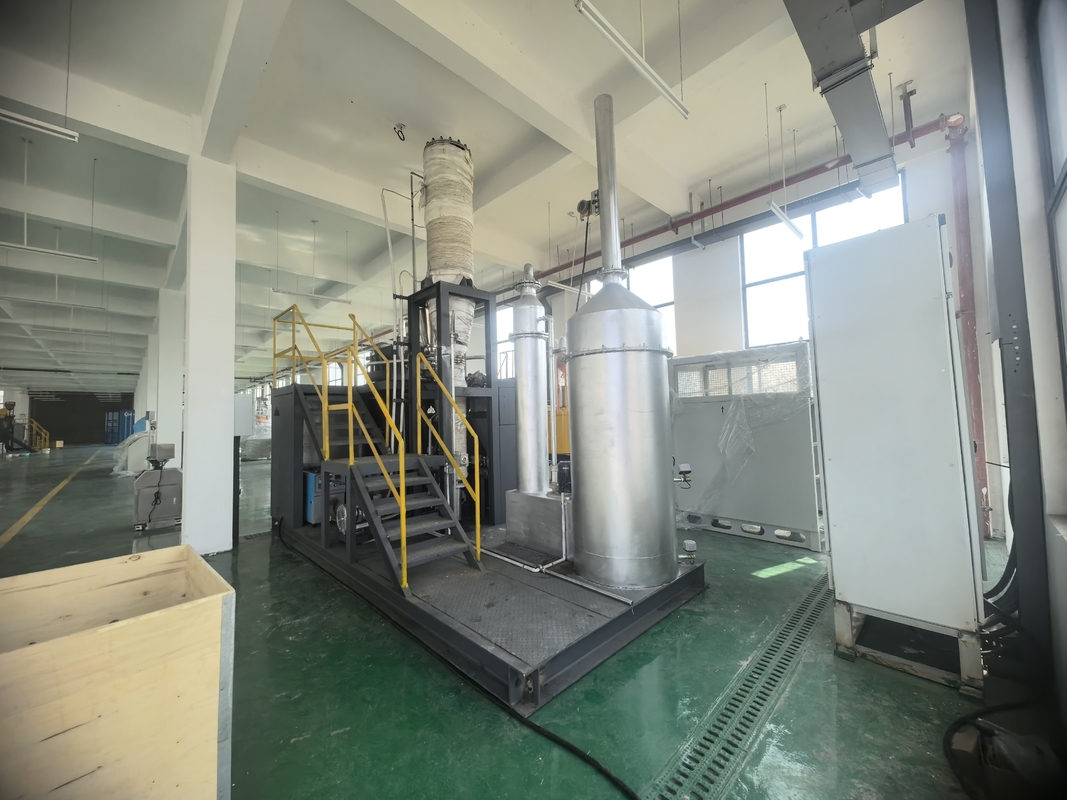

Microwave-Induced Fluidized Bed Roasting System

This advanced microwave-induced fluidized bed system integrates 2.45 GHz microwave technology, increasing reaction efficiency by 35%. The furnace is lined with a silicon carbide surface that ensures durability even under harsh conditions. It is specifically designed for fast desulfurization of zinc concentrates, with particle size capabilities ranging from 0.05 to 3 mm.

Key Features

Conical Gas Expansion: Boosts gas retention by 30%, improving roasting efficiency.
Dual-Fuel Heating (Gas + Microwave): Combines microwave and gas heat sources to optimize energy efficiency.
Dynamic Microwave Power Control: Adjusts the microwave power automatically for consistent roasting.

Core Advantages

Efficient Desulfurization: Desulfurization rate exceeding 98.5%.
Reduced Energy Consumption: 22% reduction in unit energy costs.
Coking Prevention: Patented fluidizing plate design avoids coking and maintains smooth operation.

Model Specifications

Model	Diameter (mm)	Capacity (t/h)	Power (kw)	Weight (t)
ZLFT - 0.6m²	900	0.1 - 1.2	5.5 - 7.5	3.5
ZLFT - 1.1m²	1200	0.3 - 2.7	11 - 15	5.9
ZLFT - 3m²	2000	1.1 - 3.5	22 - 30	17
ZLFT - 5m²	2600	3.8 - 7.9	30 - 45	26
ZLFT - 16m²	4600	15 - 30	90 - 110	55
ZLFT - 32m²	6400	26 - 60	132 - 180	98
