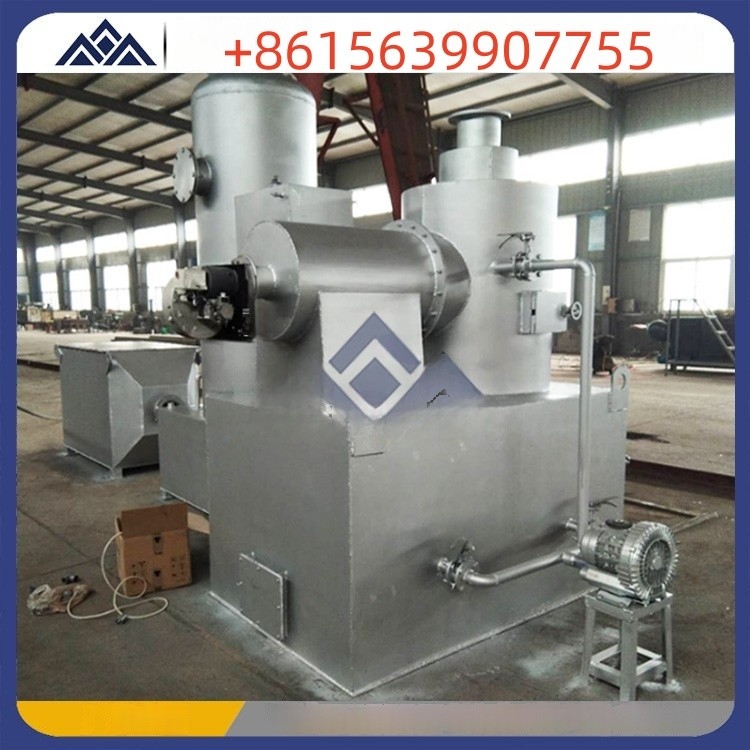

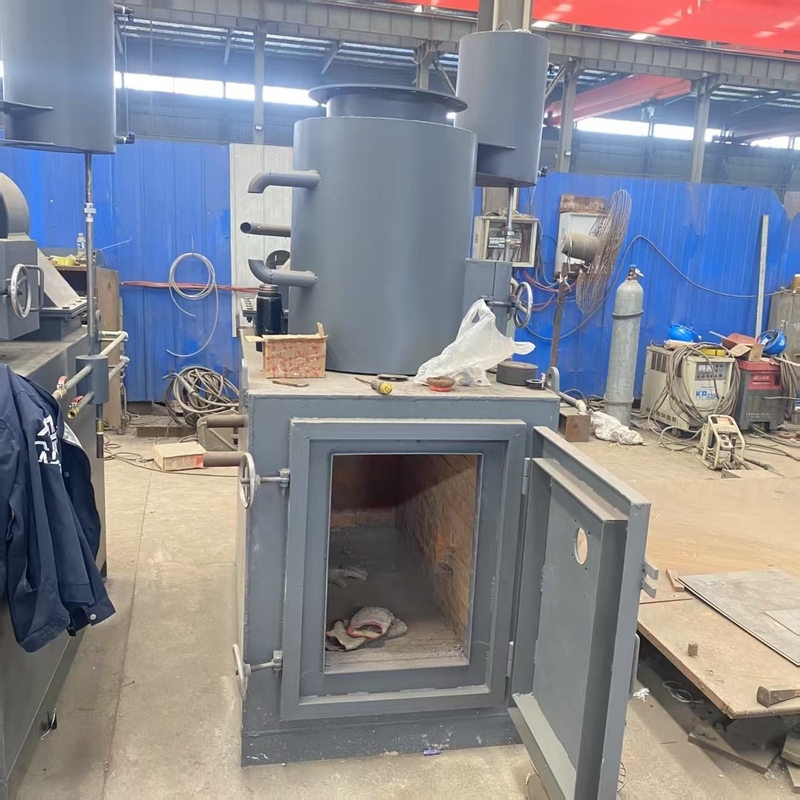

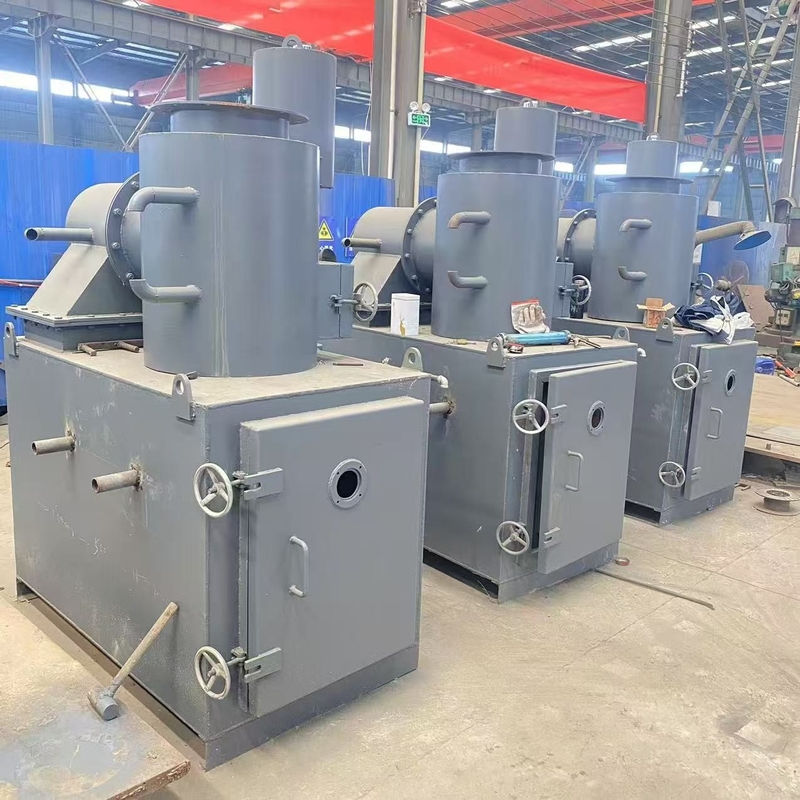

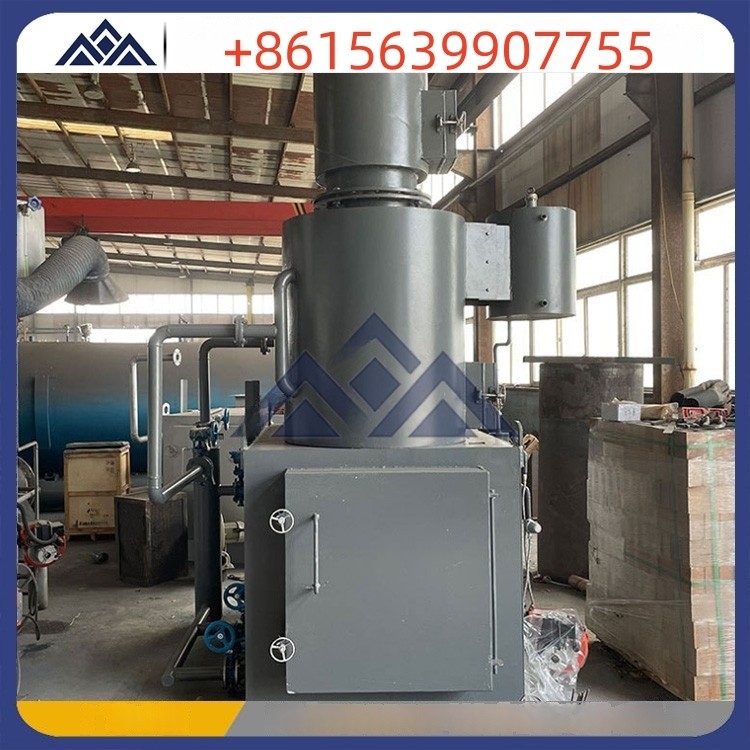

3 Phase Industrial Incinerator 800 - 1200 Degrees Solid Waste Incinerator

3 phase Industrial Incinerator

Industrial Incinerator 800 Degrees

1200 Degrees solid waste Incinerator

Place of Origin:

henan China

Brand Name:

Zoomline

Request A Quote

3 Phase Industrial Incinerator 800 - 1200 Degrees Solid Waste Incinerator

Product Details

Power Supply:

3-phase, 380V, 50Hz

Temperature Range:

800-1200 Degrees Celsius

Safety Features:

Temperature And Pressure Monitoring, Emergency Shutdown System

Fuel Type:

Natural Gas

Operation Mode:

Continuous

Control System:

PLC

Air Pollution Control System:

Cyclone Separator

Material Of Construction:

High Temperature Resistant Steel

Emission Standards:

Compliant With Local Regulations

Ash Removal System:

Mechanical Rake

Waste Type:

Solid, Liquid, And Gaseous Waste

Highlight:

3 phase Industrial Incinerator

Industrial Incinerator 800 Degrees

1200 Degrees solid waste Incinerator

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden box or film

Delivery Time

30-50 days

Payment Terms

T/T

Waste Disposal Pet Incinerator Automatic Ash Removal Dog Incinerator

Get Best Price

Video

Outdoor Waste Incinerators High Temperature Pyrolysis Heavy Duty Incinerator

Get Best Price

Video

Safe Eco Friendly Waste Incinerators Mobile Incinerator 380V 50Hz

Get Best Price

Video

Automated Waste To Energy Incinerator 10 - 500tons/Day

Get Best Price

86-0391

Contact Now

Product Description

3 Phase Industrial Incinerator 800-1200 Degrees Solid Waste Incinerator

Key Specifications

Attribute	Value
Power Supply	3-phase, 380V, 50Hz
Temperature Range	800-1200 Degrees Celsius
Safety Features	Temperature and pressure monitoring, emergency shutdown system
Fuel Type	Natural Gas
Operation Mode	Continuous
Control System	PLC
Air Pollution Control System	Cyclone Separator
Material Of Construction	High temperature resistant steel
Emission Standards	Compliant with local regulations
Ash Removal System	Mechanical Rake
Waste Type	Solid, liquid, and gaseous waste

Advanced Waste Incineration Technology

Our high-efficiency, environmentally friendly waste incinerator provides an ideal solution for industrial solid waste treatment with outstanding combustion efficiency and environmental performance.

The incinerator features a unique four-stage combustion process:

Primary incineration for initial waste decomposition
Circumferential air mixing combustion for optimal waste-air contact
Secondary pyrolysis gasification to enhance combustion efficiency
Burnout treatment ensuring complete waste combustion

Key Advantages

Extremely high incineration efficiency (≥99%) with complete waste volume reduction
Compact design with small footprint for easy installation
Fully enclosed operation prevents secondary pollution, ideal for infectious waste
Available in fuel-oil-fired and gas-fired configurations
Wide application in hospitals, hotels, commercial institutions, and public facilities

Technical Performance

When treating domestic waste, the incinerator maintains:

Stable temperature ≥850°C
Flue gas residence time ≥2.0 seconds
Incineration efficiency ≥99%
Destruction and removal rate ≥99%
Heat reduction rate of residues ≥5%

All performance indicators meet or exceed national standards for high-efficiency, harmless waste treatment.

Model Specifications

Specification	ZJS-30	ZJS-100	ZJS-200	ZJS-300	ZJS-500
Handling Capacity (kg/times)	30-80	100-150	200-300	300-400	400-550
Size of Feeding Port (mm)	480×600	760×960	900×1100	1080×1280	1300×1400
Blower Power (kw)	0.15	0.25	0.5	0.75	1.1
Primary Burner	Power: 0.17KW Oil: 4-6kg/h	Power: 0.17KW Oil: 4.5-10kg/h	Power: 0.17KW Oil: 6.5-14kg/h	Power: 0.32kw Oil: 6.5-14kg/h	Power: 0.32kw Oil: 6.5-14kg/h
Weight (t)	3.1	4.5	8.6	13.7	18.9
Chimney (mm)	273	273	-	-	-

Installation & Operation

We provide comprehensive installation instructions covering:

Main equipment hoisting
Flue gas purification chamber and chimney installation
Fan and burner setup
Oil pipeline configuration

Clear operational steps ensure smooth installation and quick commissioning.

Environmental Commitment

Choosing our waste incinerator represents a commitment to efficient, environmentally friendly, and safe waste treatment, contributing to sustainable development and environmental protection.
